Description

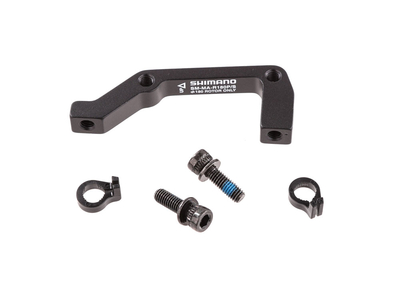

SHIMANO adapter IS to PM +40 rear | black
The adapter allows you to drive 180 mm (rear triangle with IS 5" mount ) brake discs.
The adapter expands the brake disc by + 40 mm. The IS2000 standard almost always uses the standard brake disc size of 160 mm (IS 6") on the fork. A standard brake disc size of 140 mm (IS 5") is almost always used on the rear triangle. Based on the standard brake disc size, the adapter increases the brake disc size by the specified value in millimeters.
Fork IS 6" = 160 mm standard size
Rear triangle IS 5" = 140 mm standard size
Technical data:
Adapter material: aluminum
Material screws: steel
Front extension: k. A
Rear extension: +40 mm
mount fork: IS 6"
Rear mount : IS 5"
mount brake: post mount
Color: Black
Weight according to manufacturer: kA
Weight weighed: 41g (including mounting screws)
Scope of delivery:
1x SHIMANO adapter IS to PM +40 rear | black
1x mounting screws
