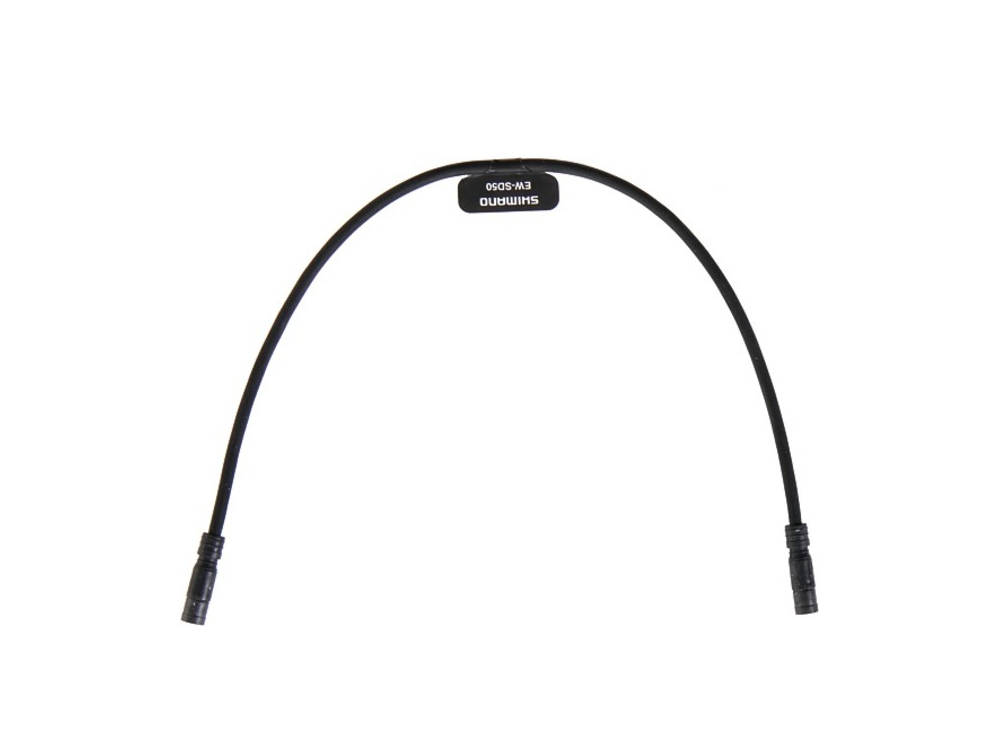

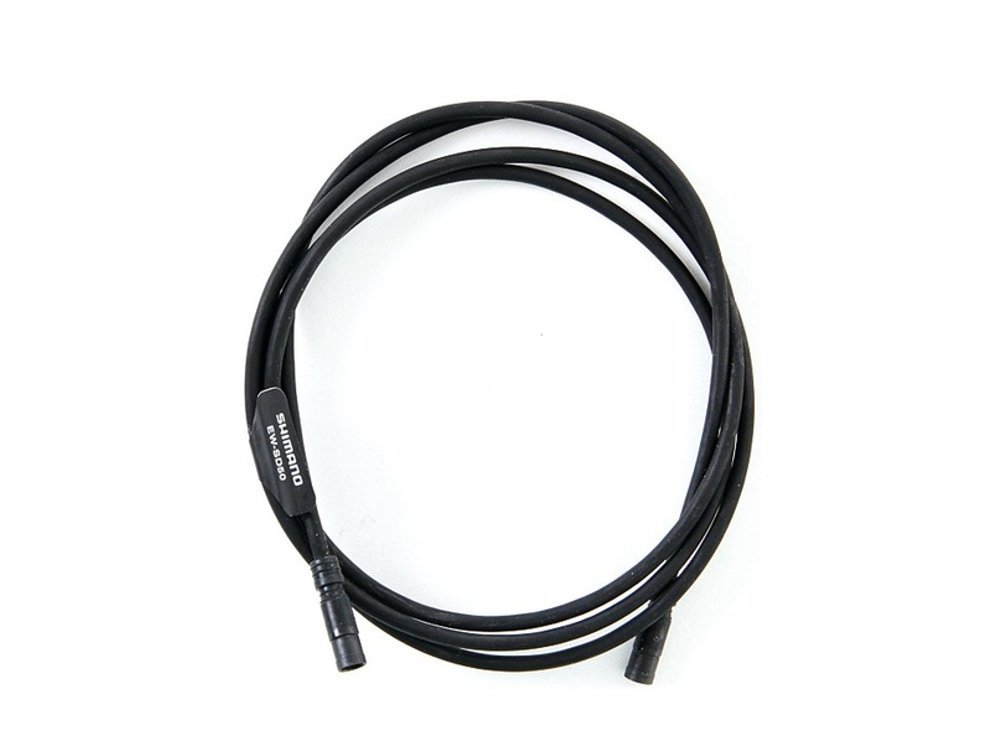

Shimano E-Tube cables for Di2 groups | FOX ICTD | EW-SD50 intern | external

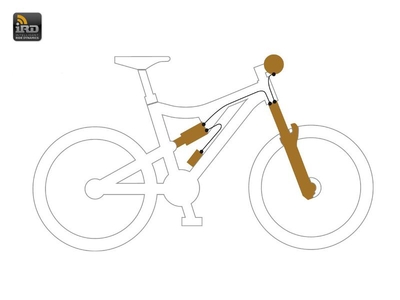

These cables connect all the electrical components of the Di2 groups of Shimano and FOX ICTD fork and shock. The connectors are waterproof and available in many lengths.
Please measure before ordering which cable length you need!
! Important The following cables are for the installation of Shimano Di2 groups imperative:
2x shorter cable of the brake / shift grips to distributor Junction A near the stem
1x Distribution Junction A on the stem to distributor Junction B in the bottom bracket
1x Distribution Junction B Battery - short for mounting the bottle holder or at mounting in seatpost
1x Distribution Junction B for derailleur - short
1x Distribution Junction B for derailleur - greater length, please note when measuring that the cable must be routed in a loop, similar to classic cable housing
For each additional lever / gear knob a further connection to the brake / shift levers or to Junction A is necessary.
Technical specifications:
Connection: E-Tube Cable Connection
Use: connection cable EW-SD50 for internal / external installation
Compatibility: Dura Ace Di2 9070 | Ultegra Di2 6770/6870 | XTR Di2 M9050 | Alfine Di2
Color: Black
Weight:
Delivery: 1x E-Tube Cable
Note: Not with Dura Ace Di2 7970 compatible!
