SHIMANO Dura Ace wheelset 28" WH-R9270 C36 Center Lock Tubeless | thru axle
Shimano also managed to further improve the optimal interplay of stiffness, aerodynamics and low weight with the wheels of the 9200 Dura Ace generation. The individual components were examined closely and significantly optimized at critical points. This means you always have the best and fastest material on your bike.

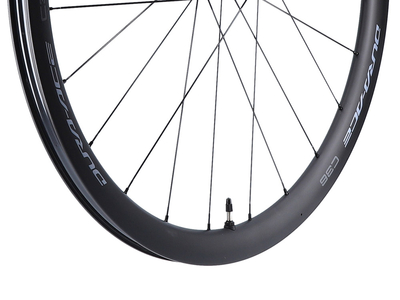

The rims are made entirely of carbon. Not only does looking at the scales make your heart happy, but when you start fast you immediately convert your energy into propulsion. Nothing is given away. The new shape reduces air resistance and thus enables higher speeds with less effort.
To improve puncture protection, you can convert to tubeless tires and increase driving comfort thanks to the lower air pressure.

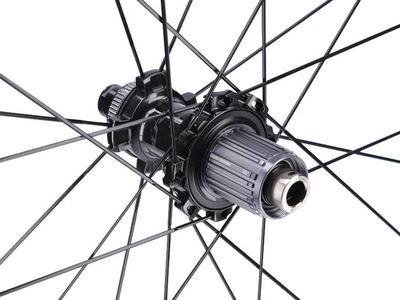

With the slim hubs, Shimano's own DIRECT ENGAGEMENT system is impressive. This significantly shortens the free travel and allows a very direct drive. The high bearing quality and the perfect seal ensure smooth running and a long service life. They are also adjustable and easy to maintain if necessary.
The new freewheel body is made of aluminum and therefore carries significantly less load without sacrificing stability or durability. However, it can only be equipped with the 12-speed Shimano Road cassettes.
Due to the low height of the rim, this wheelset feels particularly comfortable on mountainous stages or in strong winds.
Technical data:
intended use : racing bike, gravel
Wheel size: 28"
Rim type: clincher and folding tires
Brake type: disc brake, center lock
Brake pads: -
Material rims: carbon
Internal width: 21mm
External width: 28 mm
Rim height: 36mm
Number of holes: front 24 / rear 24
Spokes: Straightpull
Spoke pattern: 2-fold crossed at the front | Rear drive side crossed 3 times, non-drive side radial
Front axle type : 12x100 mm thru axle
Rear axle type : 12x142 mm thru axle
Front bearing : conical ball bearing, adjustable
bearing bearing: conical ball bearing, adjustable
Freehub compatibility: only 12-speed Shimano Road cassettes
Freewheel type: Direct engagement system (toothed disc freewheel)
Recommended tire width: 25 - 32 mm
max. air pressure: kA
maximum system weight: kA
tubeless capable: yes
Valve hole: Presta valve (SV)
Color rim / finish: black / UD carbon matt
Color decor: gray
Hub color: black
Weight according to manufacturer: 620g (front wheel), 730g (rear wheel)

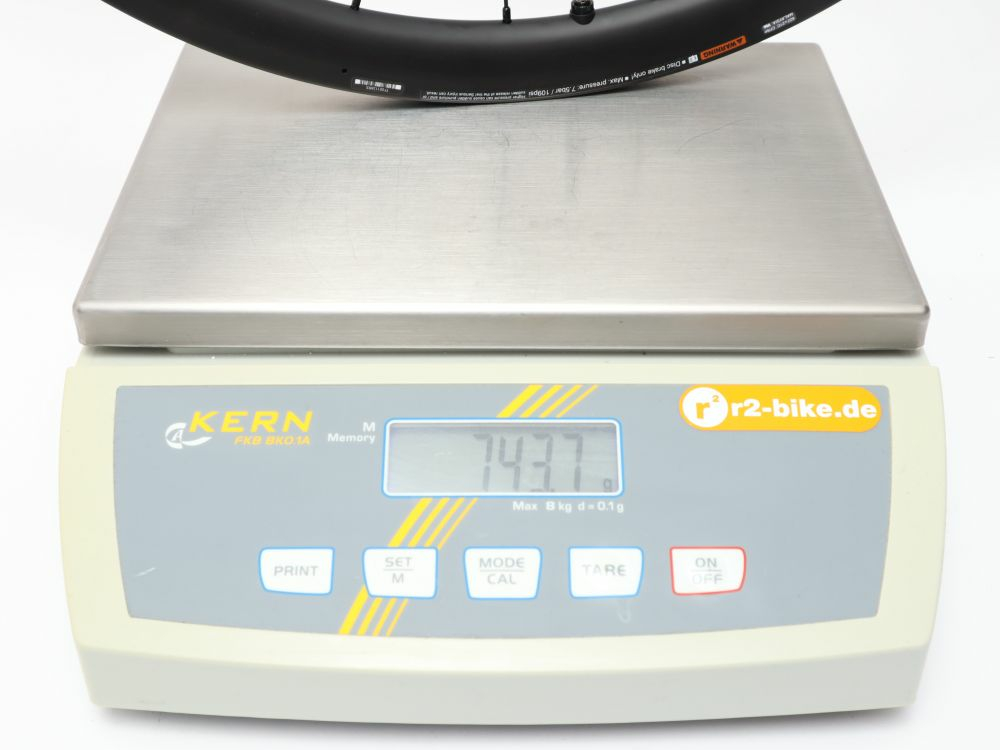

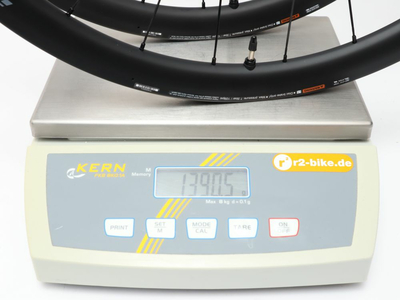

Weight weighed: 647g (front wheel including tubeless tape and valve), 744g (rear wheel including tubeless tape and valve)
Scope of delivery:
1x front wheel
1x rear wheel
Tubeless tape and tubeless valves
