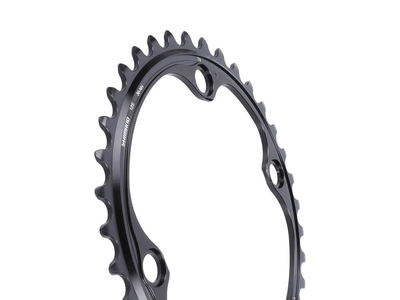

SHIMANO Dura Ace chainring FC-R9200 crank | LK110 asymmetric outside
With their special tooth profiles, mount pins and climbing aids, the Dura Ace FC-R9200 chainrings enable a particularly smooth and fast shifting process. With them, shifting under load, as one would otherwise only be used to with a rear derailleur, is possible without any problems. Its carbon fiber reinforced plastic construction with aluminum teeth helps keep weight down while increasing torsional rigidity. The Hollowglide profile of the large chainrings also contributes to this.
NOTE: The letter combinations (NK, NH, NJ) after the number of teeth should match for large and small chainrings. The Dura Ace FC-R9200 chainrings have been specially matched to one another thanks to their climbing aids and can only achieve their superior shifting performance in the combinations provided by Shimano.
Technical specifications:
Area of intended use : road, triathlon
Material: aluminum, carbon fiber reinforced plastic
Technology: Hollowglide
bolt circle diameter : 110 mm asymmetrical
Attachment: 4-arm spider asymmetrical
Number of teeth (combinability index): 50 (NK), 52 (NH) or 54 (NJ) teeth
Compatibility cranks : Shimano Dura Ace FC-R9200
Compatibility chain: Shimano HG+ 12-speed
Mounting: outside
chain line : 44.5mm
Offset: default
Adjustment options: -
Range (ovalization): -
Timing (force application): -
Colour: anthracite, glossy
Weight according to the manufacturer: kA
Weight weighed: kA
Scope of delivery: 1x outer chain ring
