Description
SHIMANO Deore disc brake 4-piston BL-M6100 + BR-M6120 | rear wheel
A component group for the masses. With the Deore M6100, Shimano offers high-end technology for MTB top groups at an entry-level price. Compromises only have to be accepted in terms of the material and the details.
Thanks to Servo Wave technology, the Deore brake shines with quick response and a very easy to control pressure point. Bleeding is very easy using one-way bleeding, but is usually only necessary when shortening the brake line. The arrangement of the clamp gives you some space on the handlebars, for example for remote levers. In addition, the rigidity could be significantly increased.

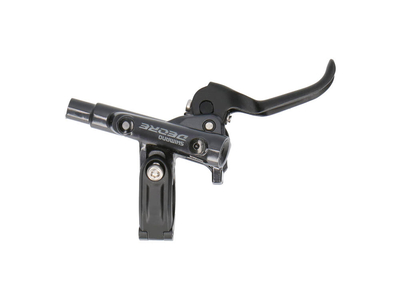

The ergonomically shaped levers are easy to operate with one or two fingers. The Shimano shift levers with I-Spec EV mount attached to the brake levers to save the additional clamp for the levers.

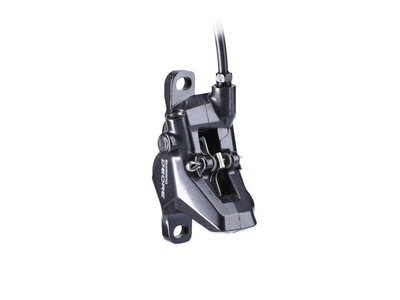

The Deore caliper is the solution to all braking problems. The 4-piston version packs a punch, but can be dosed very precisely in combination with the BL-M6100 brake lever. The construction is designed for rapid heat dissipation. This can be further supported by using ICE-Tech brake pads with cooling fins. This means that longer descents in the high mountains are a safe bet.
The attachment is very easy thanks to the post mount and maintenance is not rocket science with the one-way bleeding system.
Technical specifications:
intended use : All Mountain, Trail, Enduro
Material caliper: aluminum
Material brake lever: aluminum
Material housing: aluminum
Material fastening screws: steel
Pistons: 4
Brake Mount: Postmount
recommended brake disc: SM-RT64, SM-RT66, SM-RT54, SM-RT56 (optional)
Brake medium: mineral oil
Brake line: plastic
Brake Pad: D03S Resin (organic)
Design brake lever: 2-finger
Reach adjustment: yes, with tools
Pressure point adjustment: no
Mounting: right
Clamp: divided
Line length: 1700mm
Color: Black
Weight according to the manufacturer: kA
Weight weighed: 334g (without mounting screws)
Scope of delivery: complete, filled brake system including brake pads; without brake disc
