Description

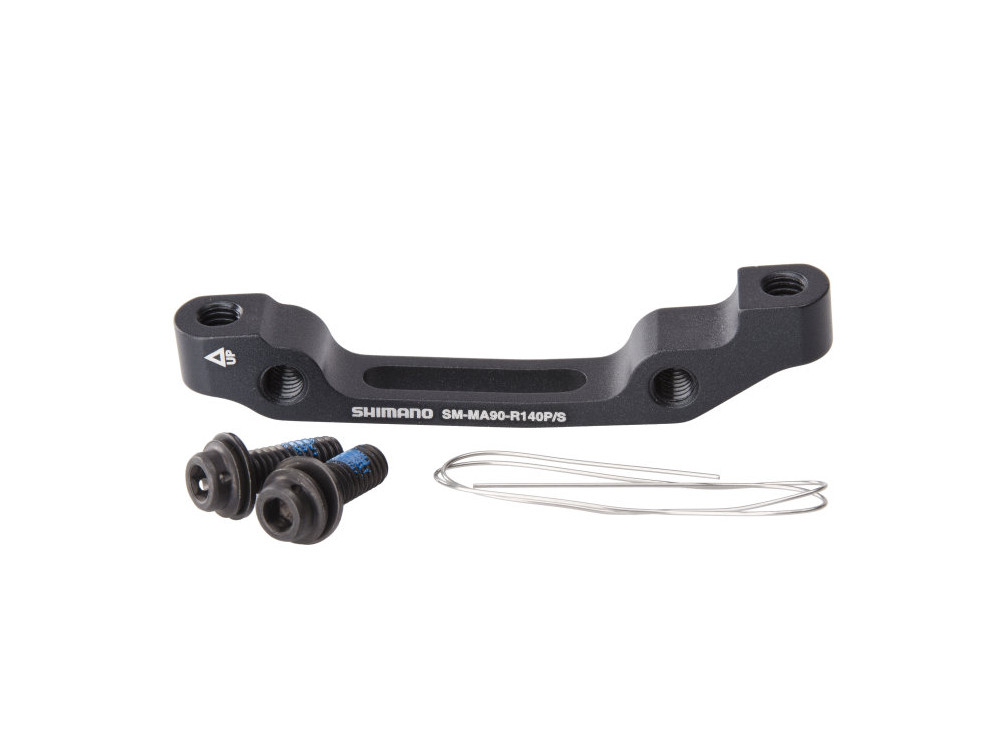

SHIMANO Adapter XTR SM-MA90 IS to PM +0 mm | black
The adapter enables the use of 160 mm (fork with IS 6" mount ) or 140 mm (rear frame with IS 5" mount ) brake discs.
The adapter expands the brake disc by +0 mm. The IS2000 standard almost always uses the standard brake disc size of 160 mm (IS 6") on the fork. A standard brake disc size of 140 mm (IS 5") is almost always used on the rear triangle. Based on the standard brake disc size, the adapter increases the brake disc size by the specified information in millimeters.
Fork IS 6" = 160 mm standard size
Rear triangle IS 5" = 140 mm standard size
Technical data:
Material adapter: aluminum
Material screws: steel
Extension in front: +0 mm
Rear extension: +0 mm
mount mount: IS 6"
mount rear triangle: IS 5"
Mount mount : Post Mount
Color: Black
Weight according to the manufacturer: kA

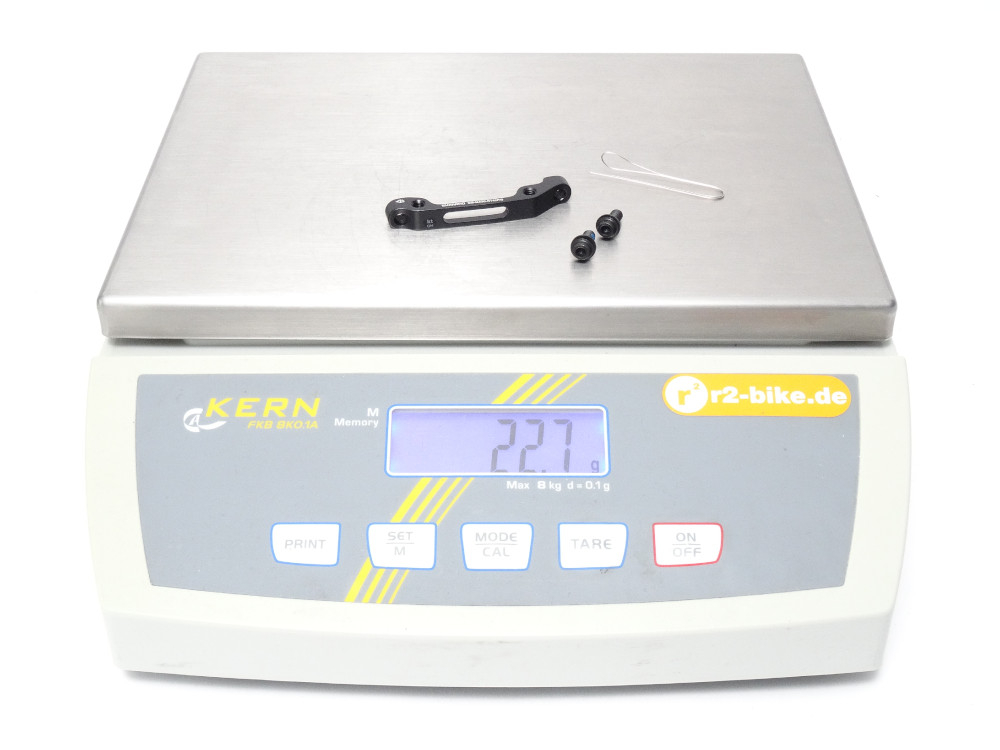

Weight weighed: from 13g (adapter without screws)
Scope of delivery:
1x SHIMANO adapter XTR SM-MA90 IS to PM +0 mm | black
1x mounting screws
