ROTOR power meter set | PowerPack MTB INSpider | Kapic Carbon crank 1-way NoQ ring | Round
The Rotor PowerPacks offer you an inexpensive way to equip your bike with a power meter.
The INSpider power meter fits perfectly into the building block system of the modular rotor cranks . In combination with the extremely light Kapic Carbon crank arms, the PowerPack is intended for use on MTBs. Technically speaking, the INSpider lies between the 2INpower and INpower power measurement systems from Rotor. While the INpower only measures the power in one crank arm, the INSpider determines the power of both legs using 4 counter-rotating strain gauges. This enables a precise performance analysis of pedaling and potential for improvement can be made visible. The separate analysis of both legs, as allowed by the two-sided separate measurement of the 2INpower, is not possible. The system automatically compensates for measurement deviations due to temperature fluctuations. However, after installing or changing the chainrings and at least once a month, the INSpider should be calibrated manually using a compatible ANT + / BLuetooth bike computer or the Rotor software. Thanks to a completely encapsulated measurement technology, the power meter is insensitive to environmental influences and, thanks to a magnetic shop connector, is completely waterproof. The integrated battery ensures an operating time of up to 200 hours.
Another highlight of the system is the TORQUE 360 evaluation option. The torque curve during one pedal revolution can be analyzed using Rotor's in-house software. This measurement technology is particularly valuable for riders who use Rotor's oval Q-ring chainrings. The software can determine the optimal position of the Q-Rings via the OCA (optimized-chainring-angle) system. This way you can bring your power to the pedal even more effectively.
Technical specifications:
intended use : Cross Country, Marathon, Tour
Material crank arms: carbon
Material spider: aluminum 7075
Material chainring: aluminum 7075
Material crankshaft: aluminum 7075
Crankshaft diameter: 30 mm
Crank lengths: 170 or 175.0 mm
bolt circle diameter diameter: 110 mm asymmetrical
Chainring mount: 4-hole asymmetrical (Shimano)
Chainring gradation: 34 or 36 teeth
Ovalization: -
Q factor: 169 mm BOOST
chain line : 52 mm BOOST
Compatibility bottom bracket: BB89, BB92, BB30, BB84, PF30-Fsi Ai, PF30, BSA30
Technology: Rotor Power Meter, OCP-Mount
Power meter measuring strips: 4 (counter-rotating)
Transmission standard: Bluetooth, ANT +
Battery: firmly integrated, up to 200 operating hours (can be charged via charging cable)
Color: Black
Weight according to the manufacturer: INSpider -149g, Kapic Carbon crank set - 429g (175 mm crank arms, crankshaft, 32T chainring; without INSpider)

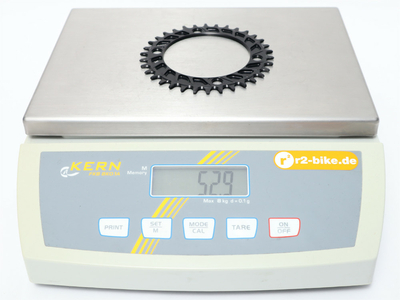

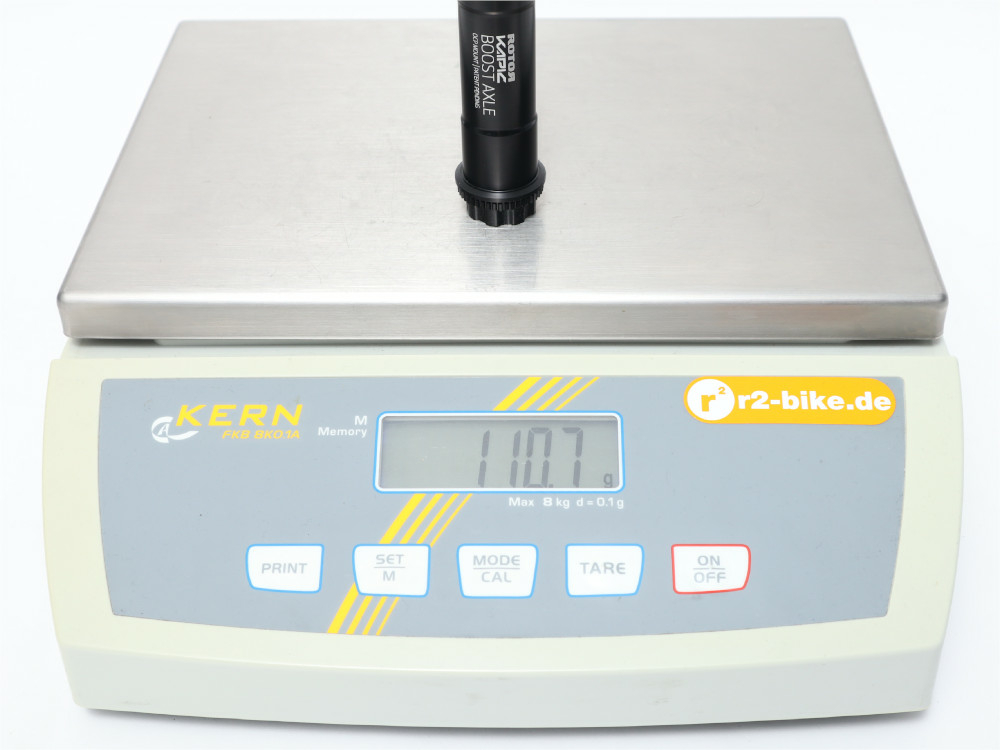

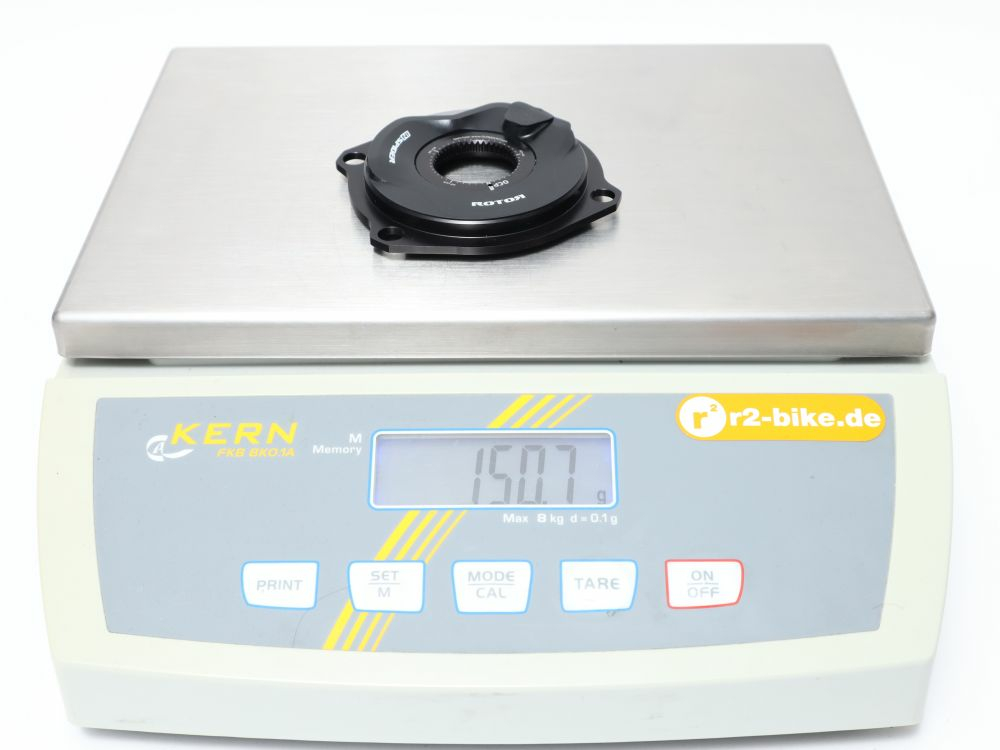

Weight weighed: INSpider - 151g, Kapic Carbon crank arms - 260g (170 mm), 34T chainring - 53g, crankshaft - 111g
Scope of delivery:

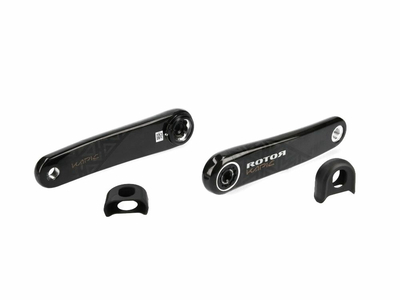

1x Rotor Kapic carbon crank arms
1x rotor 30 mm crankshaft
1x Rotor INSpider power meter including 1-fold chainring | round
1x charging cable
1x instruction manual
You can find information on assembly here .
Please note the information on the battery regulation .
