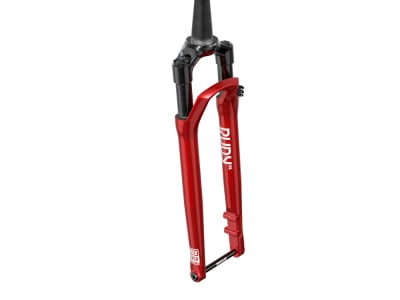

ROCKSHOX suspension fork 700C Rudy XL Ultimate Race Day 60 mm 12x100 mm 45 mm offset tapered red
Rudy XL - next level comfort and control.
With the Rudy XL Ultimate you push the limits of your gravel bike into a new dimension. With a suspension travel of 60 mm, it irons out every bump and lets you experience even the longest day in the saddle like a wellness vacation. But without grip, even the longest suspension travel is useless. With the option of riding tires up to 2.25" wide, traction is in no way inferior to suspension travel. Last but not least, RockShox has given the fork the Charger Race Day 2 shock. It perfectly controls the suspension travel to always have perfect traction, but can also come up with a lockout function, hard as a rock. This allows you to climb any mountain, no matter how steep, as efficiently as possible.
All in all, with the Rudy you have exactly the overall package that allows you to ride longer and further. Day after day.
Electric Red
Red embodies the speed, power and intensity typical of racing. Since 1989, red has been a defining and ever-present color in the RockShox catalog. From now on, the same red extends to all suspension forks and shocks in the RockShox Signature series.
Ultimate
The best of the best. Ultimate performance at the lowest weight. With products from the RockShox Ultimate series, you experience the highest performance, every day.
Solo Air
The negative and positive air chambers are filled simultaneously using only one valve. This makes it much easier to adjust your personal set-up. It is specially adapted to the short stroke of the Rudy.
30 mm stanchions
An optimum compromise between low weight, high rigidity and reliable functionality.
Charger Race Day 2
The further development of the highly acclaimed Charger damper. The rebound is individually adjustable and the fork can be locked out with the compression stage. The Charger Race Day 2 is the lightest damping cartridge ever built by RockShox.
Maxle Stealth
Very light thru-axle, which can be fitted and removed with a 6 mm hexagon socket. In addition to a clean look, it also saves some weight on the unsprung mass.
Bolt on Fender
The fender with its two-bolt attachment sits perfectly in place. Unsightly solutions with cable ties are finally a thing of the past.
Tire clearance
To ensure that the grip of your new fork is not compromised in any way, you can run tires up to 29x2.25".
Technical data:
Area of application: Gravel
E-bike ready: yes
Wheel size: 28"
Material fork crown/steerer: aluminum - hollow forged/aluminum
Material stanchions: Aluminium, 30 mm straight wall, black anodized (Fast Black)
Material downtubes: magnesium
Axle standard: 12 x 100 mm thru axle (Maxle Stealth incl.)
Fork steerer: tapered 1.5" to 1 1/8" (28.6 mm to 40 mm)
Fork steerer length: 310 mm
Suspension travel: 60 mm
Suspension system: SoloAir, spring rate adjustment via an auto-valve
Adjustment of the spring characteristic: no
Damping: Charger Race Day 2, rebound adjustable
Lockout: on the fork crown
Installation height: 470 mm
Brake mount: Direct Flat Mount (160 mm)
Max. max. permissible brake rotor size: 180 mm
Max. tire diameter: 716 mm
Max. tire width: 55.5 mm
Max. system weight: 135 kg Offset: : 135 kg: 135 kg
Offset: 45 mm
Colour: glossy red (Electric Red,Casting), black anodized stanchions (Fast Black)
Weight according to manufacturer: 1350g
Weight self-weighed: -
Scope of delivery:
1x ROCKSHOX suspension fork 700C Rudy XL Ultimate Race Day 60 mm 12x100 mm 45 mm offset tapered red
1x Maxle Stealth thru axle
1x Star Nut Ahead claw
1x ROCKSHOX mudguard Rudy XL Fender with mounting bolts
Modell ID:
FS-RDYX-ULT-A1
