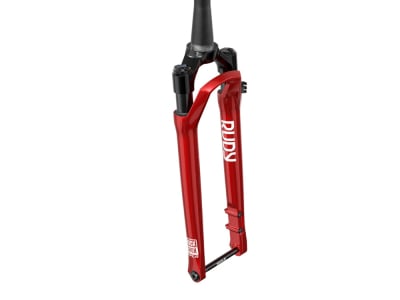

ROCKSHOX suspension fork 700C Rudy Ultimate XPLR Charger Race Day 2 Crown Adjust 40 mm 12x100 mm 51 mm Offset tapered red
Gravel goes wild.
With the Rudy, all ambitious gravel riders get an efficient, lightweight suspension fork. Even if the tour moves into the three-digit range, you have the comfort and control from start to finish to reach your destination relaxed. A SoloAir air spring specially tuned to the fork does the most important part of the work: the suspension. But of course this work must also be kept under control. This is where the optimized Charger Race Day 2 damper comes into play. Even the smallest detail has been optimized to offer you perfect function with low weight. Thanks to the two-way adjustable compression stage, you have the choice between open and a "Rock Solid" lockout.
The fork is also visually impressive, with both a chassis specially designed for gravel use and an optimally designed top section with 30 mm stanchions and a CNC-machined crown that fit perfectly into your bike.
Electric Red
Red embodies the speed, power and intensity typical of racing. Since 1989, red has been a defining and ever-present color in the RockShox catalog. From now on, the same red extends to all suspension forks and shocks in the RockShox Signature series.
SoloAir air spring
The negative and positive air chambers are filled simultaneously using just one valve, which makes it much easier to adjust the personal set-up. It is specially adapted to the short suspension travel of the Rudy.
Charger Race Day 2
The optimized Charger Race Day 2 damper has been improved in many details and all unnecessary weight has been saved.
Maxima Plush
Special lubricants to reduce friction and noise.
Maxle Stealth
Very light thru axle, which can be mounted and removed with a 6 mm hexagon socket. In addition to a clean look, it also saves some weight on the unsprung mass.
Technical data:
Area of application: Gravel
E-bike ready: yes
Wheel size: 28"
Material fork crown/stem: milled aluminum - hollow forged / aluminum
Material stanchions: Aluminium, 30 mm straight wall, black anodized (Fast Black)
Material downtubes: magnesium
Axle standard: 12 x 100 mm thru axle (Maxle Stealth incl.)
Fork steerer: tapered 1.5" to 1 1/8" (28.6 mm to 40 mm)
Fork steerer length: 310 mm
Suspension travel: 40 mm
Suspension system: SoloAir
Adjustment of the spring characteristic: no
Damping: Charger Race Day 2, rebound adjustable
Lockout: on the fork crown, 2 positions - Open/Lock
Installation height: 435 mm
Brake mount: Direct Flat Mount (160 mm)
max. max. permissible brake rotor size: 180 mm
Max. tire diameter: 716 mm
Max. tire width: 50 mm
Max. System weight: 135 kg
Offset: 51 mm
Colour: red (Electric Red), black anodized stanchions (Fast Black)
Weight according to manufacturer:
Weight self-weighed: 1345g incl thru axle, 30 mm travel
Scope of delivery:
1x ROCKSHOX suspension fork 700C Rudy Ultimate XPLR Charger Race Day 2 Crown Adjust 40 mm 12x100 mm 51 mm offset tapered red
1x Maxle Stealth thru axle
1x Star Nut Ahead claw
1x ROCKSHOX mudguard Rudy XPLR Fender with mounting bolts
Modell ID:
FS-RUDY-ULT-A2
