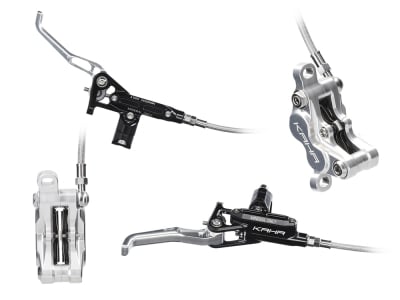

RADIC PERFORMANCE disc brake KAHA | silver / black | Set
Radic Performance - Proudly engineered in New Zealand
Braking power straight from the mountain of destiny! With the KAHA disc brake, mechanical engineer Taylor Grey proves that New Zealand has more to offer than hobbits and fateful rings. His specialty is additive manufacturing in the automotive industry - and it is precisely this expertise that he is now bringing to the development and production of bicycle components.
The name "KAHA" comes from the language of the Māori, the indigenous people of New Zealand, and can be translated as inner strength or physical power. The brake more than lives up to this meaning: thanks to the large mechanical transmission ratio between finger force and clamping force of the brake calliper, it delivers impressive braking power. At the same time, it impresses with a precise pressure point, which is made possible by a very short free travel, steel flex lines and the brake levers mounted on bearings.
However, a good brake is not only characterized by pure power, but also by easy maintenance: The brake caliper has a continuous brake fluid channel that flows through all pistons one after the other. This allows the system to be completely flushed when bleeding. Another clever detail: the pistons have an integrated thread which, in combination with the special tool supplied, enables easy removal and installation.
Technical data:
Area of application: Trail, all-mountain, enduro, downhill, e-bike
Brake caliper material: 7075 milled aluminum
Brake lever material: 7075 milled aluminum
Bolt material: 7075 titanium
Mounting bolt material: not included in the scope of delivery
Piston: 4
Brake mounting: Postmount 6"
Brake rotor: 1.8 mm - 2.3 mm | available separately (180 mm | 203 mm | 223 mm)
Brake fluid: Mineral oil (recommended Gold Hydraulic Oil)
Brake hose: Braided steel hose diameter 5.0 +/- 0.2 mm - (for easier internal installation in frame)
Brake pad: Radic Performance organic (pad 3L135)
Brake lever design: 2-finger
Reach adjustment: yes / with tool (2 mm hexagon socket)
Pressure point adjustment: yes, tool-free via rotary wheel
Mounting: left front or right rear
Clamp: split
Cable length: front 860 mm, rear 2000 mm
Color: silver / black (brake lever: black / silver, brake caliper: silver)
Weight according to manufacturer: 310g (front brake with 860 mm cable length and brake pads)
Weight when weighed: 620g (set, including brake pads)
Scope of delivery:
1x RADIC PERFORMANCE front disc brake with 860 mm steel flex line
1x RADIC PERFORMANCE rear disc brake with 2000 mm steel flex line
2x RADIC PERFORMANCE brake pads (organic)
2x pad retaining screws
1x disassembly tool for brake pistons
WITHOUT brake discs, mounting bolts and adapters
