RACE FACE Rim 29" AR 25 Offset

Item number:
Product weight: 465 g
Brands: Race Face

67,50 €
MSRP: 79,00 €
You save 14,56%, that is 11,50 €

including 19% VAT. excl. Shipping costs / shipping time info (standard - NO EXPRESS)

available from stock
Credit Card, PayPal, Amazon...
Secure Transaction
Refund within 100 Days
Free Return

Product details


RACE FACE rim 29 "AR 25 offset

The Race Face AR rims offer an inexpensive alternative to the ARC high-end aluminum rims. In contrast to the ARC rims, they add a little extra weight thanks to a different aluminum alloy, but with the identical rim profile they have the same design-related advantages on the trail. Due to the offset of the spoke holes, extremely stiff and more durable wheels can be built with the AR rims. This is achieved through a more balanced spoke tension between the drive side and the non-drive side. The AR offset rims are available with an inner width of 25 to 40 millimeters, which means they cover a intended use of intended use from XC to aggressive all-mountain.
A specially shaped rim well with a central recess and minimalist, short hooks on the rim flange keep the tire on the rim in every situation, even with low air pressures. If you drive tires on a wide rim, the risk of the tire jumping off is reduced, buckling in curves is prevented and the puncture protection is increased. The grip is significantly improved due to the larger contact surface of the tire.
The black anodized finish saves weight and gives the rims a subtle look with their vinyl decals. With a separately available tubeless kit, the rims can be converted to tubeless ready.

Technical specifications:

intended use : XC, marathon, tour
Material: aluminum 6061
Rim type: Clincher (wire and folding tires)
Brake type: only for disc brake
ETRTO: 622x25c
EARTH: 600 mm
Inner width: 25 mm
External width: 28.4 mm
Rim height: 20 mm
Offset: 3 mm
Number of holes: 32
tubeless capable: yes
Recommended tire width: 48-68 mm
maximum rider weight: n / a
maximum spoke tension: 1200N
Color: black anodized

Weight according to the manufacturer: 470g

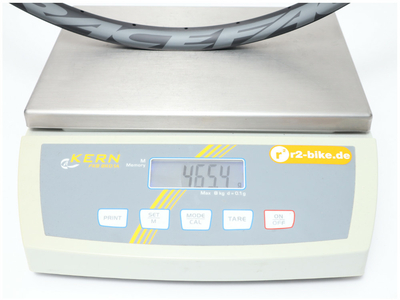

Weight weighed: 465g

Scope of delivery: 1x Race Face AR 25 offset rim 29 "
