RACE FACE rim 27.5 "| 650B ARC 25 offset
The ARC rim is now one of the favorite rims of wheel builders from all over the world. With the new offset variants, even stiffer and more durable wheels can be built. This is achieved through a more balanced spoke tension between the drive side and the non-drive side. The offset versions are available with an inner width of 25 to 40 millimeters, which means they can be used for intended use from XC to aggressive all-mountain.
A specially shaped rim well with a central recess and minimalist, short hooks on the rim flange keep the tire on the rim in every situation, even with low air pressures. If you drive tires on a wide rim, the risk of the tire jumping off is reduced, buckling in curves is prevented and the puncture protection is increased. The grip is significantly improved due to the larger contact surface of the tire.
The rim is made of forged aluminum 6069, the joint is inserted and is additionally glued to increase durability and reduce weight. The black anodized finish saves weight and gives the rims a subtle look with their vinyl decals. With a separately available tubeless kit, the rims can be converted to tubeless ready.
Technical specifications:
intended use : XC, marathon, tour
Material: aluminum 6069
Rim type: Clincher (wire and folding tires)
Brake type: only for disc brake
ETRTO: 584x25c
EARTH: 562 mm

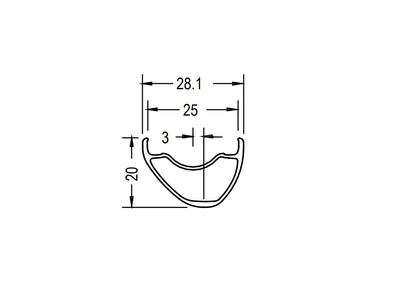

Inner width: 25 mm
External width: 28.1 mm
Rim height: 20 mm
Offset: 3 mm
Number of holes: 28 or 32
tubeless capable: yes
Recommended tire width: 48-68 mm
maximum rider weight: n / a
maximum spoke tension: 1200N
Color: black anodized
Weight according to the manufacturer: 428g
Weight weighed: 409g
Scope of delivery: 1x Race Face ARC 25 offset rim 27.5 "| 650B
