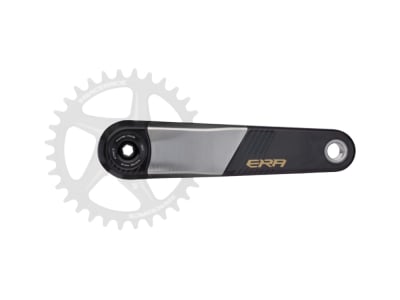

RACE FACE Crank Set ERA Carbon CINCH System 136 mm Crank Spindle | kashmoney

This crank will outlast your bike! With the ERA, Race-Face is launching the stiffest and most durable carbon crank in the company's history. It is also one of the lightest cranks on the market for use on all-mountain and trail bikes. Its newly designed pedal inserts are directly connected to the carbon layup, thus eliminating one of the weak points of many carbon cranks. To keep the ERA looking like new even after many years, the crank arms have a stainless steel scuff guard. A pair of crank boots is also included in the scope of delivery. Convinced of the durability of the ERA, Race-Face gives a 10-year guarantee on the crank, which also applies in the event of crash damage.

With a width of 136 millimetres, the crankshaft is optimized for frames with a 148 millimetre BOOST standard. 30 millimetres in diameter, it is compatible with all common bottom bracket standards such as BSA, Pressfit92 and PF30. If required, the shaft can also be replaced with a wider version. The chainring is attached using the Race-Face CINCH system, with an integrated shaft profile in the right-hand crank arm serving as a chainring mount and a lockring to secure it. The chainring is fitted using a standard bottom bracket wrench, making it easy to replace the chainring.

NOTE: You can find suitable bottom brackets and chainrings in our store.

Technical specification:

Area of application: All-mountain, trail
Material crank arms: Carbon
Crankshaft material: Aluminum 7055
Shaft diameter: 30 mm
Crank arm lengths: 160 mm, 165 mm, 170 mm or 175 mm
Spider/chainring mount: Race Face CINCH system
Chainline: 52 mm or 55 mm
Q-factor: 176 mm
Bottom bracket compatibility: BSA30, Pressfit92 and PF30 etc.
max. rider weight: n.a.
Finish: UD Carbon matt
Color crankarm: black | graphics kashmoney

Weight according to manufacturer: 483g (170 mm, incl. 32 tooth chainring, without bottom bracket)
Weight weighed: 413g (160 mm, crank arms including crankshaft)

Scope of delivery:

2x Race Face ERA crank arms
1x Race Face cinch shaft (136 mm)
1x pair of Race Face crank bolts
1x pair of Race Face crank boots
(without spider, chainrings, bottom bracket)

Assembly instructions: Race Face Cinch cranks DE | EN | FR
