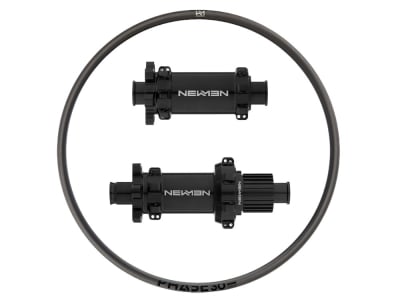

R2BIKE wheelset e-bike 29" TR EN | Newmen MTB Straightpull 6-hole hubs | Newmen carbon rims
Area of application: E-bike, Trail TR to Enduro EN
This wheelset can also withstand the special stresses of an e-bike drive. The indestructible Newmen hubs and the excellently manufactured and lightweight Newmen rims are forgiving of the occasional riding error. The well-balanced selection of components guarantees you a high level of reliability and a long service life.
Hubs
The Newmen FADE hubs will also find many fans again. Here too, you don't need to worry about adjusting the axial bearing play. The durable, double-sealed industrial bearings are pressed in precisely and tension-free ex works. This further development has resulted in a high degree of user-friendliness. The time you save can be better spent on your favorite trail.
The design of the freewheel is completely different from the previous model. The aim was to keep noise levels low. The result was the FADE pawl system. This involves 3 pawls engaging in a new type of tooth profile. To increase durability, the diameter was increased and the individual pawls were made short and wide. This distributes the resulting forces over a larger area.
Despite the relatively low weight, safety has not been compromised. It is better to use a little more material at critical points, such as the transition between the brake disk and spoke mount, than to risk a defect.
Rims
Advanced becomes Phase - Newmen provides a special rim for every area of application within this series. Whether cross-country, all-mountain or enduro, you will always get a model that is uncompromisingly customized, but they all have one thing in common: Newmen's high quality.
The Phase Base front and rear or in combination with a Phase Strong rim on the rear wheel are the first choice for anyone who really wants to let it rip. They shine with low weight and first-class riding characteristics. The perfectly processed carbon fibers are extremely impact-resistant and give the rim incredible stability. This means that precise steering movements are possible at all times. A special production process makes reworking and painting unnecessary. This saves even more grams.
The very generous inner width of 30 mm, together with the slightly outward-positioned sidewall, gives the tire an optimally round shape, which is reflected in better grip and more comfort.Newmen has opted for a hookless rim flange, which has been specially reinforced to better withstand possible punctures. This means that you can ride with less air pressure and achieve optimum tubeless compatibility.
Spokes
The Race spoke is the classic from Sapim. It is a round spoke with a butted center section with a diameter of 1.8 mm. This provides more damping than non-tapered spokes. In addition, short load peaks can be better digested. The Race spoke enables very stiff and stable wheels for practically any application. The weight including nipple is approx. 6.95g per piece.
Wheel construction at R2-Bike
Our wheels are assembled completely by hand by our wheel builders. During the entire assembly process, great importance is attached to ensuring that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to give the first owner a lifetime guarantee against spoke breakage, as long as it was not caused by force.
The following services are also included for first-time buyers:
You will receive a universal wheel bag for all common sizes.
You will receive a spare spoke with nipple in all required spoke lengths so that you can repair the wheel quickly after an accident.
Within 2 years of purchase you will receive a free initial inspection of the wheel, where the resulting work is completely free of charge. Only shipping costs apply.
You get a crash replacement promise: If your wheel is damaged due to force majeure within 2 years of purchase, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.
Technical data:
Range of use: E-bike, Trail TR to Enduro EN
Wheel size: 29" (ETRTO: 622 x 30)
Rim type: clincher (clincher and folding tires)
Brake type: Disc brake
Brake disk mount: 6-hole
Weights:
1603g (lightest version: Boost + Boost, Base + Base rims, Sapim Race)
1703g (heaviest version: Boost + Boost, Base + Strong rims, Sapim Race)
Note:
Deviations in weight are possible due to manufacturing variations in all components. The specifications are generally calculated without rim tape, valves and decals/rim stickers.
The specified delivery time refers to the usual time required to assemble the wheelset and does not reflect the availability of the individual parts.
If you require a special spoking on the rear wheel, e.g. for the Cannondale Ai rear triangle or for EVO6, please contact our service team.
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
