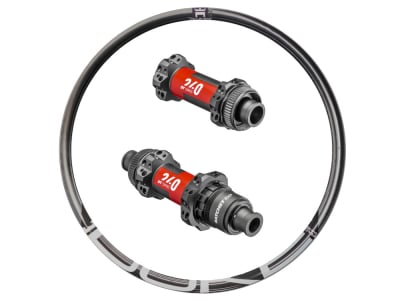

R2BIKE Wheelset 29" XC DC | DT Swiss 240 MTB Straightpull Center Lock Hubs | Duke Carbon Rims

Area of ​​application: Cross Country XC
ETRTO: 622x28
Inner width: 28 mm
External width: 34.5 mm
Rim height: 20 mm
Offset: 2.8 mm
Recommended tire width: 1.9" - 2.6" (48 - 66 mm)
Maximum tire pressure: max. 2.3 bar (at 2.25" tire width)
Maximum system weight: 110 kg (rider, bike, clothing and possibly luggage)
Color/Finish: black / UD satin gloss
Weight according to the manufacturer: 285g (without sticker)
Weight weighed: 293g

Area of ​​application: Cross Country XC
ETRTO: 622x31
Inner width: 31 mm
External width: 37.3 mm
Rim height: 20 mm
Offset: 2.8 mm
Recommended tire width: 2.1" - 2.8" (53 - 71 mm)
Maximum tire pressure: max. 2.3 bar (at 2.25" tire width)
Maximum system weight: 110 kg (rider, bike, clothing and possibly luggage)
Color/Finish: black / UD satin gloss
Weight according to the manufacturer: 285g (without sticker)
Weight weighed: 295g

Area of ​​application: Down Country DC
ETRTO: front 622x31 - rear 622x28
Inner width: front 31 mm - rear 28 mm
External width: front 37.3 mm - rear 34.8 mm
Rim height: front 20 mm - rear 20 mm
Offset: front 2.8 mm - rear 2.8 mm
Recommended tire width: front 2.1" - 2.8" (53 - 71 mm) - rear 1.9" - 2.6" (48 - 66 mm)
Maximum tire pressure: max. 2.3 bar (at 2.25" tire width)
Maximum system weight: 120 kg (rider, bike, clothing and possibly luggage)
Color/Finish: black / UD satin gloss
Weight according to the manufacturer: 350g (without sticker)
Weight weighed: front 363g - rear 362g

Area of ​​application: Down Country DC
ETRTO: 622x28
Inner width: 28 mm
External width: 34.8 mm
Rim height: 20 mm
Offset: 2.8 mm
Recommended tire width: 1.9" - 2.6" (48 - 66 mm)
Maximum tire pressure: max. 2.3 bar (at 2.25" tire width)
Maximum system weight: 120 kg (rider, bike, clothing and possibly luggage)
Color/Finish: black / UD satin gloss
Weight according to the manufacturer: 350g (without sticker)
Weight weighed: 362g

Area of ​​application: Down Country DC
ETRTO: 622x31
Inner width: 31 mm
External width: 37.3 mm
Rim height: 20 mm
Offset: 2.8 mm
Recommended tire width: 2.1" - 2.8" (53 - 71 mm)
Maximum tire pressure: max. 2.3 bar (at 2.25" tire width)
Maximum system weight: 120 kg (rider, bike, clothing and possibly luggage)
Color/Finish: black / UD satin gloss
Weight according to the manufacturer: 350g (without sticker)
Weight weighed: 363g

Area of ​​application: Cross Country XC
ETRTO: front 622x31 - rear 622x28
Inner width: front 31 mm - rear 28 mm
External width: front 35.7 mm - rear 34.5 mm
Rim height: front 20 mm - rear 20 mm
Offset: front 2.8 mm - rear 2.8 mm
Recommended tire width: front 2.1" - 2.8" (53 - 71 mm) - rear 1.9" - 2.6" (48 - 66 mm)
Maximum tire pressure: max. 2.3 bar (at 2.25" tire width)
Maximum system weight: 100 kg (rider, bike, clothing and possibly luggage)
Color/Finish: black / UD satin gloss
Weight according to the manufacturer: front 245g (without sticker) - rear 285g (without sticker)
Weight weighed: front 267g - rear 293g

Area of ​​application: Cross Country XC
ETRTO: 622x28
Inner width: 28 mm
External width: front 33.2 mm - rear 34.5 mm
Rim height: 20 mm
Offset: 2.8 mm
Recommended tire width: 1.9" - 2.6" (48 - 66 mm)
Maximum tire pressure: max. 2.3 bar (at 2.25" tire width)
Maximum system weight: 100 kg (rider, bike, clothing and possibly luggage)
Color/Finish: black / UD satin gloss
Weight according to the manufacturer: front 242g (without sticker) - rear 285g (without sticker)
Weight weighed: front 261g - rear 293g

Area of ​​application: Cross Country XC
ETRTO: 622x31
Inner width: 31 mm
External width: front 35.7 mm - rear 37.3 mm
Rim height: 20 mm
Offset: 2.8 mm
Recommended tire width: 2.1" - 2.8" (53 - 71 mm)
Maximum tire pressure: max. 2.3 bar (at 2.25" tire width)
Maximum system weight: 100 kg (rider, bike, clothing and possibly luggage)
Color/Finish: black / UD satin gloss
Weight according to the manufacturer: front 245g (without sticker) - rear 285g (without sticker)
Weight weighed: front 267g - rear 295g

Intended use: Cross Country, Trail, All Mountain, Gravel, BMX
Weight including nipple: approx. 5.95g (1 piece)

Sapim places the D-Light between the Laser and the Race. It's not quite as light as the former, but it's almost as durable as the stable Race. This makes it interesting even for BMX riders. The tapered middle section is able to absorb even high peak loads, thereby minimizing the risk of breakage. At the same time, it is stiff enough to prevent unwanted torsion during wheel building, which simplifies the process and enables durable wheels. The sum of the properties makes the Sapim D-Light a universal spoke with which there are almost no limits.

Application: Cross Country, Trail, Gravel, Road
Weight incl. nipple: approx. 5.45g (1 piece)

With the CX-Ray, Sapim has succeeded in developing an extraordinary spoke. In addition to its low weight, it has exceptional resilience and flexibility. This also results in the large range of applications. It doesn't matter whether you are a racing cyclist or a mountain biker, everyone benefits from these positive characteristics. In addition, the flattened center section ensures excellent aerodynamics. The high material quality enables the construction of stable wheels and guarantees a long service life.

Application: Cross Country, Trail, Gravel, Road
Weight incl. nipple: approx. 5.45g (1 piece)

With the CX-Ray, Sapim has succeeded in developing an extraordinary spoke. In addition to its low weight, it has exceptional resilience and flexibility. This also results in the large range of applications. It doesn't matter whether you are a racing cyclist or a mountain biker, everyone benefits from these positive characteristics. In addition, the flattened center section ensures excellent aerodynamics. The high material quality enables the construction of stable wheels and guarantees a long service life.

Application: Cross Country, Trail, Gravel, Road
Weight incl. nipple: approx. 5.5g (1 piece)

The DT Swiss Aerolite has been the first choice of many wheel builders for building high-end wheelsets for years. With its middle section flattened to 0.9 millimeters, the Aerolite cuts particularly well through the air and helps you to save some watts at high speeds. In addition, it is the lightest flat spoke in the DT-Swiss range. The spoke is first butted to a thickness of 1.5 mm in a cold forging process and then flattened in a further process. This complex process further increases the strength and gives the Aerolite its high stability and durability. Thanks to these properties, the bladed spoke can be used on racing bikes or mountain bikes and fits into all hubs with standard bores.

Area of ​​use: MTB, Gravel
Weight including nipple: approx. 5.5g (1 piece)

The DT Swiss Revolite spoke combines low weight and durability. In the course of the development process, various variants were tested extensively until the final shape and choice of raw materials were determined. The result is a cross-shaped cross-section flattened on one side, which is considered the best compromise between the above properties. In addition, a special, patented cold forging process ensures that the material is compressed and thus also increases stability. Nevertheless, the spokes can also digest harder blows, which makes them particularly suitable for use on mountain bikes.

Area of ​​use: MTB, Gravel
Weight including nipple: approx. 5.5g (1 piece)

The DT Swiss Revolite spoke combines low weight and durability. In the course of the development process, various variants were tested extensively until the final shape and choice of raw materials were determined. The result is a cross-shaped cross-section flattened on one side, which is considered the best compromise between the above properties. In addition, a special, patented cold forging process ensures that the material is compressed and thus also increases stability. Nevertheless, the spokes can also digest harder blows, which makes them particularly suitable for use on mountain bikes.

Application: Cross Country, Trail, Gravel, Road
Weight incl. nipple: approx. 5.45g (1 piece)

"Nati per vincere – Born to win" is the motto of the Ultralite Aero. With it, Alpina has developed an exceptional spoke, making it the first choice for almost any application. The high-quality stainless steel alloy is the perfect foundation for all its positive attributes. It ensures lasting durability and weather resistance without adding significant weight. The special shape with its flattened center section guarantees excellent aerodynamics while allowing the spoke to react flexibly under high peak loads, thus preventing fatigue fractures. This also increases rider comfort. In the straight-pull version, the elimination of the highly stressed spoke bend further removes a potential weak point, thus minimizing the risk of punctures.

Use of high-quality SAPIM or DT Swiss spoke nipples made of aluminium with a total length of 14/15 mm. The head shape of SAPIM and DT Swiss spoke nipples allows the nipple to align itself better in the pulling direction of the spoke. For a beautiful look, the aluminium nipples are high-quality anodized to match your accent colour on the bike.

Weight per piece: 0,35g

Use of high-quality SAPIM or DT Swiss spoke nipples made of aluminium with a total length of 14/15 mm. The head shape of SAPIM and DT Swiss spoke nipples allows the nipple to align itself better in the pulling direction of the spoke. For a beautiful look, the aluminium nipples are high-quality anodized to match your accent colour on the bike.

Weight per piece: 0,35g

Use of high-quality SAPIM or DT Swiss spoke nipples made of aluminium with a total length of 14/15 mm. The head shape of SAPIM and DT Swiss spoke nipples allows the nipple to align itself better in the pulling direction of the spoke. For a beautiful look, the aluminium nipples are high-quality anodized to match your accent colour on the bike.

Weight per piece: 0,35g

Use of high-quality SAPIM or DT Swiss spoke nipples made of aluminium with a total length of 14/15 mm. The head shape of SAPIM and DT Swiss spoke nipples allows the nipple to align itself better in the pulling direction of the spoke. For a beautiful look, the aluminium nipples are high-quality anodized to match your accent colour on the bike.

Weight per piece: 0,35g

Use of high-quality SAPIM or DT Swiss spoke nipples made of aluminium with a total length of 14/15 mm. The head shape of SAPIM and DT Swiss spoke nipples allows the nipple to align itself better in the pulling direction of the spoke. For a beautiful look, the aluminium nipples are high-quality anodized to match your accent colour on the bike.

Weight per piece: 0,35g

Use of high-quality SAPIM or DT Swiss spoke nipples made of aluminium with a total length of 14/15 mm. The head shape of SAPIM and DT Swiss spoke nipples allows the nipple to align itself better in the pulling direction of the spoke. For a beautiful look, the aluminium nipples are high-quality anodized to match your accent colour on the bike.

Weight per piece: 0,35g

Use of high-quality SAPIM or DT Swiss spoke nipples made of aluminium with a total length of 14/15 mm. The head shape of SAPIM and DT Swiss spoke nipples allows the nipple to align itself better in the pulling direction of the spoke. For a beautiful look, the aluminium nipples are high-quality anodized to match your accent colour on the bike.

Weight per piece: 0,35g

Use of high-quality SAPIM or DT Swiss spoke nipples made of aluminium with a total length of 14/15 mm. The head shape of SAPIM and DT Swiss spoke nipples allows the nipple to align itself better in the pulling direction of the spoke. For a beautiful look, the aluminium nipples are high-quality anodized to match your accent colour on the bike.

Weight per piece: 0,35g
