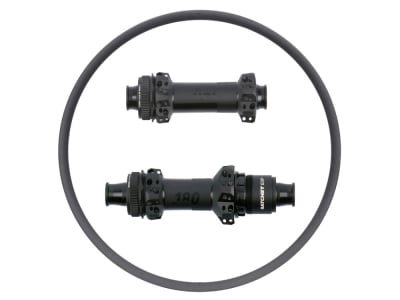

R2BIKE wheelset 29" XC DC | DT Swiss 180 EXP MTB Straightpull Center Lock hubs | R2BIKE carbon rims
Application: Cross Country XC, Down Country DC
XC racers always want to win and are therefore looking for lightweight yet stable wheels. The combination of R2BIKE carbon rims and DT Swiss hubs should therefore always be on your shortlist. The balanced component selection guarantees you high reliability and a long service life.
Hubs
Lighter, stiffer, more precise and easier to maintain - these are the strengths of the DT Swiss 180 hubs. The smooth-running SINC Ceramic ball bearings offer you a further decisive advantage; they ensure minimal rolling resistance. The stiffness of the hub body serves to distribute the load more evenly on the spokes. Drive and braking forces are transmitted even better from both spoke flanges to all spokes. One-sided load peaks are prevented, which protects the hub, spokes and rim. The RATCHET EXP toothed disc freewheel has also been further developed. This highly reliable system ensures direct power transmission without losses.
The main advantages of Straightpull hubs, apart from the modern design, are contactless spokes that do not cause any unpleasant noises and spoke heads that cannot work their way into the spoke flange. However, if desired, the straightpull hubs can also be cross-spoked.
Rims
If you don't want to compromise, here is the perfect rim for your adventures. Very light, stable and durable, there are no limits to its XC use and your opponents will only see your rear wheel. And it doesn't skimp on safety either, as it is approved for a system weight of 100 kg.
How did the developers achieve this? First and foremost, of course, the choice of material plays an important role. Not all carbon is the same. The decision was made to use high-quality T700 fibers from Toray Industries, one of the world's leading suppliers of this material. These have incredible strength, are very stiff and also weigh very little. However, high-end material alone does not make a high-quality product. It also depends on the manufacturing process, which is where the rims score points. Their sandwich construction combines different carbon layers. This enables specific, punctual reinforcements and therefore greater overall stability of the rim without increasing the weight.In addition, a carbon strip was used in the spoke hole area to prevent the nipples from tearing out and to allow higher spoke tension.
The unique, flawless look in an elegant matt finish is also achieved using a special resin. This allows the carbon layers to harden perfectly, prevents bubbles from forming and ensures a resistant surface. This means that even stone chips cannot harm it.
The hookless rim flange ensures the best tubeless compatibility and high puncture protection. This has been specially reinforced to distribute the forces over a larger area. This significantly reduces the likelihood of damage in the event of punctures. Lateral bruises are also much easier to absorb, so you can be forgiven for the odd riding mistake.
The rim has an asymmetrical rim profile, which enables a more even spoke angle. This optimization has a number of advantages. The tension on both sides can be better aligned, which is beneficial to the durability of the spokes and the wheel as a whole. The normally direction-dependent lateral stiffness is also adjusted, making the wheel more stable in itself.
Wheel construction at R2-Bike
Our wheels are assembled entirely by hand by our wheel builders. During the entire assembly process, great importance is attached to ensuring that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to give the first owner a lifetime guarantee against spoke breakage, as long as it is not caused by force.
The following services are also included for first-time buyers:
You will receive a universal wheel bag for all common sizes.
You will receive a spare spoke with nipple in all required spoke lengths so that you can repair the wheel quickly after an accident.
Within 2 years of purchase you will receive a free initial inspection of the wheel, where the resulting work is completely free of charge. Only shipping costs apply.
You get a crash replacement promise: If your wheel is damaged within 2 years of purchase due to force majeure, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.
Technical data
Area of application: Cross Country XC, Down Country DC
Wheel size: 29" (ETRTO: 622 x 30)
Rim type: clincher (clincher and folding tires)
Brake type: Disc brake
Brake disc mount: Center Lock
Weights:
1197g (lightest version: Boost + Boost, SRAM XD, XC 30, Sapim CX-Ray)
1281g (heaviest version: Boost + Boost, Shimano MTB, XC 30, Sapim Race)
Notes:
Due to manufacturing variations in all components, deviations in weight are possible. The specifications are generally calculated without rim tape, valves and decals/rim stickers.
The specified delivery time refers to the usual time required to assemble the wheelset and does not reflect the availability of the individual parts.
If you require a special spoking on the rear wheel, e.g. for the Cannondale Ai rear triangle or for EVO6, please contact our service team.
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
