R2BIKE wheelset 28" Disc RR GRV | Hope Road Straightpull Center Lock hubs | R2BIKE Carbon rims
Application: Road bike RR, Gravel GRV
Road cyclists and gravel riders are always looking for the best compromise between weight, aerodynamics and stiffness. The combination of R2BIKE carbon rims and the reliable Hope hubs should therefore always be on the shortlist. The well-balanced selection of components guarantees you high reliability and a long service life.
Hubs
At the center of the wheelset are the Pro 5 hubs from the English cult manufacturer from Barnoldswick. The experience gained from 30 years of designing and manufacturing high-quality drive elements has been incorporated into their development with the aim of improving proven technology in order to meet the demands of current and future bicycle technology.
The design of the rear hub differs significantly from its predecessor, with an enlarged body that generates more rigidity without increasing the weight. This is noticeable above all in a much more direct ride. At the same time, the diameter of the spoke flange has been increased, making it easier to build very stable wheels.
The highlight of the rear wheel hub is the new 6-pawl freehub system in offset design, which is characterized by the fact that three of the six pawls are always engaged when riding in order to distribute the load evenly. In addition, the freehub gearing has been increased from 44 (Pro 4) to 54 teeth, resulting in a total of 108 engagement points and a low free travel of just 3.33°. In addition, some material has been removed from the pawl springs, slightly reducing the spring force and lowering their resistance. Hope has thus achieved the right balance between smooth running and durability with the Pro 5.
The hub can withstand negative external influences for a long time, thanks to the high-quality anodization and the very well-sealed stainless steel industrial bearings. Should the ravages of time take their toll on the hub, it can be dismantled and serviced with little effort. It can also be easily converted to a different hub standard.

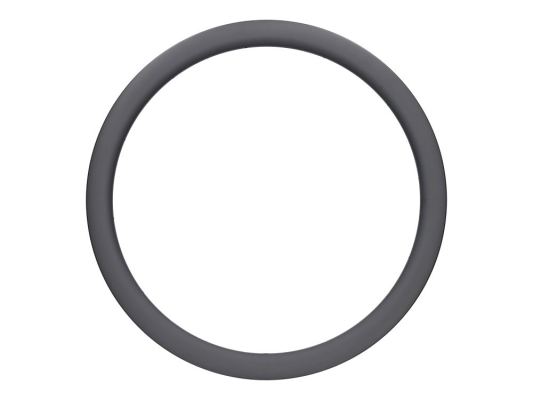

Rims
Perfectly finished, light and yet sufficiently stiff are the most important specifications of the R2BIKE rims. Depending on the rim height, you can conquer summits or make good speed on the flat. And they have not skimped on safety either, as they are approved for a system weight of 90 kg.
How did the developers achieve this? First and foremost, of course, the choice of material plays an important role. Not all carbon is the same. The decision was made to use the high-quality T800 fibers from Toray Industries, one of the world's leading suppliers of this material. These have incredible strength, are very stiff and yet are among the lightest on the market. However, high-end material alone does not make a high-quality product. It also depends on the manufacturing process, which is where the rims score points. Their sandwich construction combines different carbon layers. This enables specific, punctual reinforcements and therefore greater overall stability of the rim without increasing the weight.In addition, a carbon strip was used in the spoke hole area to prevent the nipples from tearing out and to allow higher spoke tension.
The unique, flawless look in an elegant matt finish is also achieved using a special resin. This allows the carbon layers to harden perfectly, prevents bubbles from forming and ensures a resistant surface. This means that even stone chips cannot harm it.
The rim flank has a classic hook for secure tire guidance. This prevents the tire from bouncing even at high air pressures and you always have your bike under control. Of course, the rims can also be ridden tubeless.
They also have an asymmetrical profile, which allows a more even spoke angle. This optimization has a number of advantages. The tension on both sides can be better aligned, which is beneficial to the durability of the spokes and the wheel as a whole. The normally direction-dependent lateral stiffness is also adjusted, making the wheel more stable in itself.
Wheel construction at R2-Bike
Our wheels are assembled entirely by hand by our wheel builders. During the entire assembly process, great importance is attached to ensuring that not only the concentricity is correct, but also that the spoke tension is as even as possible. This special care allows us to give the first owner a lifetime guarantee against spoke breakage, as long as it is not caused by force.
The following services are also included for first-time buyers:
You will receive a universal wheel bag for all common sizes.
You will receive a spare spoke with nipple in all required spoke lengths so that you can repair the wheel quickly after an accident.
Within 2 years of purchase you will receive a free initial inspection of the wheel, where the resulting work is completely free of charge. Only shipping costs apply.
You get a crash replacement promise: If your wheel is damaged within 2 years of purchase due to force majeure, we will rebuild it once. We grant a 100% discount on all labor costs and only charge for the material.
Technical data:
Area of application: Road bike RR, Gravel GRV
Wheel size: 28" (ETRTO: 622 x 24)
Rim type: clincher (clincher and folding tires)
Brake type: Disc brake
Brake disc mount: Center Lock
Weights:
1384g (lightest version: 12x100 mm + 12x142 mm, 35, Sapim CX-Ray)
1546g (heaviest version: Boost + Boost, 45, Sapim Race)
Note:
Deviations in weight are possible due to manufacturing variations in all components. The specifications are generally calculated without rim tape, valves and decals/rim stickers.
The specified delivery time refers to the usual time required to assemble the wheelset and does not reflect the availability of the individual parts.
Scope of delivery:
1x complete wheelset, fully assembled (hubs, rims, spokes and nipples)
1x wheel bag
4x spare spokes including nipples
1x assembly certificate
2x hologram stickers
