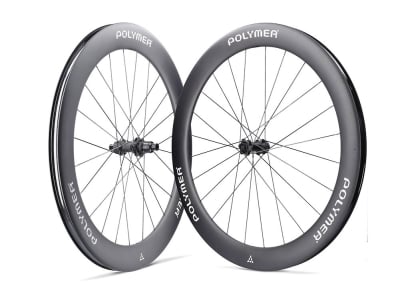

POLYMER WORKSHOP wheelset 28" Eclipse 58:65 Center Lock | white
The young Danish company Polymer Workshop has a clear focus on developing innovative products of the highest quality that help you take your performance and riding experience on the bike to the next level. To meet their high standards, Polymer Workshop works with leading experts in the bike industry, from designers to manufacturers. They select their partners with the utmost care and combine the knowledge of successful athletes with the know-how of material, design and technology experts.
The Eclipse 58:65 wheelset has been developed for road races and rides at maximum speed. With their 58 millimetre (front) and 65 millimetre (rear) high, aerodynamically optimized rim profiles with an outer width of 32 millimetres, they help you cut through the wind efficiently at high speeds. The hooked design of the rims ensures a secure tire fit. With an inner width of 23 millimetres, the Eclipse wheels are ideally suited for modern tubeless road tires from 28 millimetres wide.
At the center of the wheels are the in-house hubs, which are CNC-milled from a solid block of aluminum. Durable industrial steel bearings are used to ensure a long service life and low friction coefficient. Sophisticated seals effectively protect the inside of the hub against the ingress of dust and water, making the Eclipse wheels the perfect companion even in adverse conditions. Thanks to the high level of manufacturing precision, the frictional resistance of the seals can be reduced to a minimum. A 36-tooth freewheel ensures fast traction.
The wheels are spoked with Sapim CX-Ray aero spokes. The aluminum nipples recessed into the rims ensure an additional reduction in air resistance.
Despite the high and bulbous rim profiles, the Eclipse 58:65 wheelset only weighs 1470 grams. The high weight allowance of up to 120 kilograms (rider, bike, clothing and possibly luggage) speaks for the robustness of the wheels.
Technical data:
Area of application: Road bike, all-road
Wheel size: 28" (ETRTO (23-622 mm)
Rim type: clincher and folding tires
Brake type: Disc brake
Brake pads: -
Brake disc mount: Center Lock
Hub material: Aluminum, steel
Rim material: T800 carbon
Spoke material: Carbon
Inner width: 23 mm (Hookless)
Outer width: 32 mm
Rim height: front: 58 mm | rear: 65 mm
Number of holes: 24
Spokes: Sapim CX-Ray straight-pull bladed spokes
Lacing pattern: 2x crossed
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Front bearing: 2x S&S steel ball bearings
Rear bearing: 4x S&S steel ball bearings
Freehub compatibility: 11-, 12-speed Shimano Road | 11-speed SRAM Road; 12-speed SRAM XDR
Freewheel type: toothed pulley freewheel, 36 teeth
recommended tire width: at least 28 mm to 40 mm
maximum tire pressure: 8.3 bar / 120 PSI
tubeless capable: yes
maximum system weight: 120 kg (rider, bike, clothing and possibly luggage)
Valve hole: Presta valve (SV)
Color rim / finish: black / UD Carbon matt
Color decor: white
Color hubs: black
Weight according to manufacturer: 1470g (with Shimano freehub body)
Weight weighed by ourselves: Wheelset - 1479g, front wheel - 655g, rear wheel - 824g (with Shimano Road freehub body including tubeless tape)
Scope of delivery:
1x POLYMER WORKSHOP front wheel 28" Eclipse 58 mm Center Lock | white
1x POLYMER WORKSHOP rear wheel 28" Eclipse 65 mm Center Lock | white
2x center lock ring
2x tubeless valves
1x 3m tubeless tape
2x tire levers
