PI ROPE Wheelset 28" Gravel FADE Center Lock Beast GR40 | Black Premium Edition

Item number:
Product weight: 1426 g
Brands: PI ROPE

2.849,00 €
MSRP: 2.899,00 €
You save 1,72%, that is 50,00 €

including 19% VAT. , free shipping (DE) / shipping time info (Sperrgut)

Freehub Body

There are variations of this item. Please select the variation you wish.

available from stock
Credit Card, PayPal, Amazon...
Secure Transaction
Refund within 100 Days
Free Return

We can't deliver this item to your chosen country.

Product details | Availability

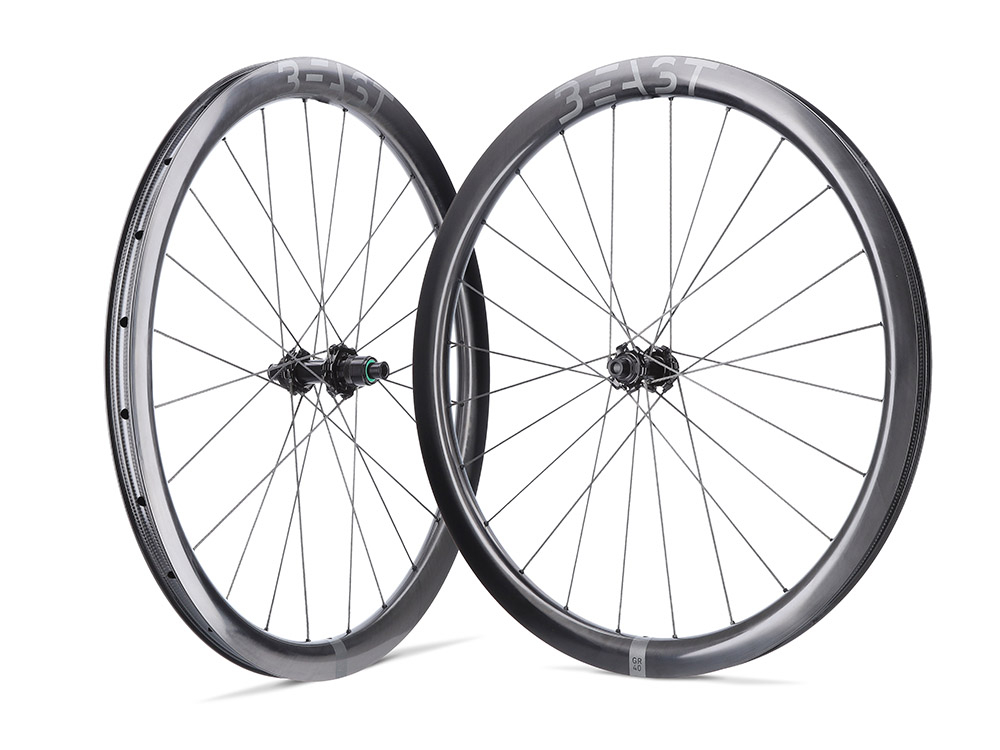

PI ROPE wheelset 28" Gravel FADE Center Lock Beast GR40 | Black Premium Edition

A robust Gravel wheelset with textile spokes, can that work? So far, there have been many approaches from well-known manufacturers, but all of them have produced unsatisfactory results. The young and extremely innovative think tank PI ROPE from Chemnitz, Saxony, has made the impossible possible in cooperation with the Technical University of Chemnitz. The result is a textile spoke made of braided Vectran synthetic fibers.
The material is extremely robust, resistant to aging and weathering, and has better mechanical properties than its steel counterpart. The tensile strength and damping is many times higher, but the weight of the fibers is five times lower. These are optimal prerequisites for a very light, but nevertheless hard-wearing wheel, as the rotating masses are minimized in the important outer areas and the flexibility of the Vectran textile spokes prevents permanent plastic deformation at high peak loads.

Thanks to the black PI PROTECT coating of the Vectran yarn before the braiding process, the properties of the textile spokes are improved. The treated surface not only looks good, it also offers better UV protection and reduces the impact of adverse weather conditions.
In addition, the abrasion resistance against external damage, such as that caused by stones and branches on the trail, increases. Any mechanical loads that occur are better absorbed and ensure greater durability. The resulting increase in rigidity is particularly noticeable when cornering. Another plus, the processing of the textile spokes, could be qualitatively optimized again.

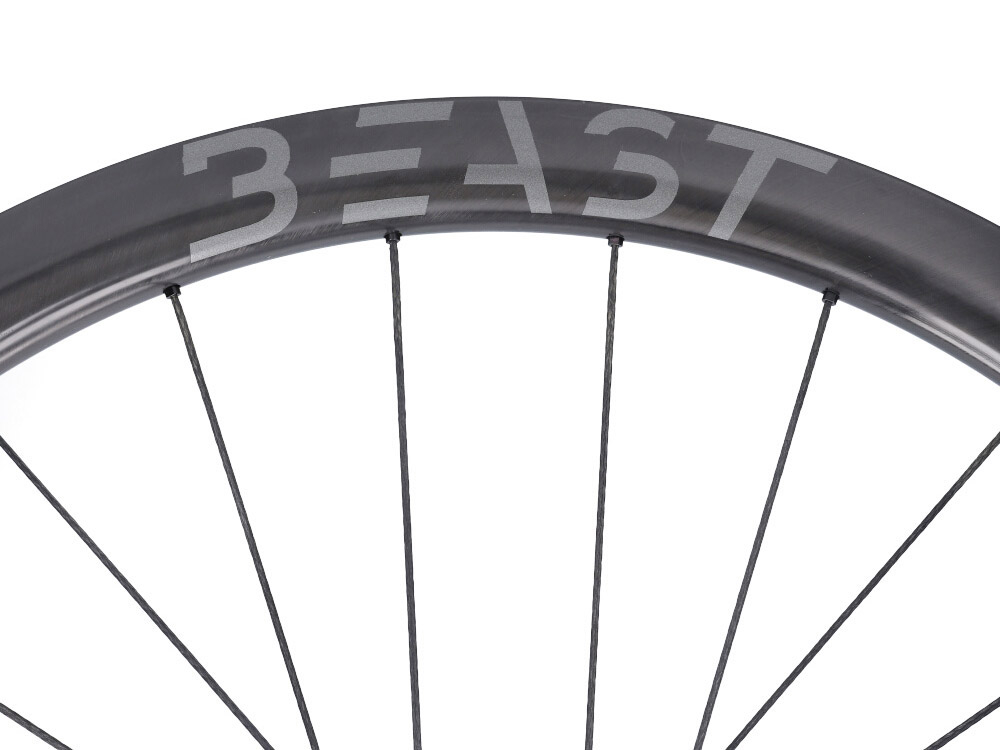

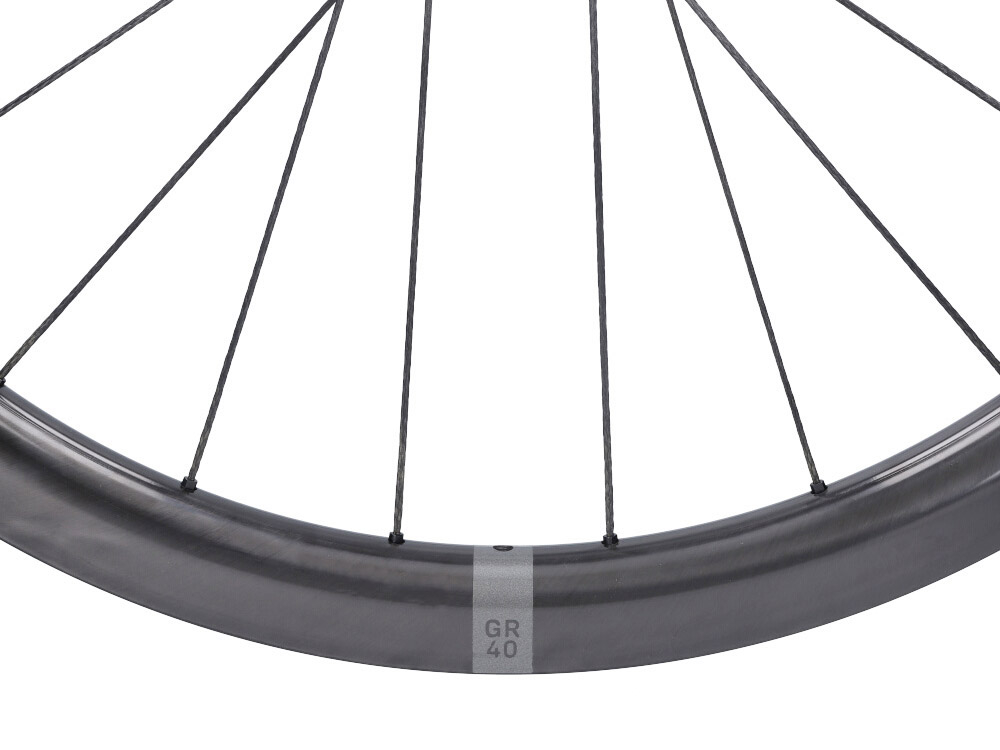

The GR40 rims from Beast Components are the ideal basis for this extraordinary wheelset. The small manufactory from Dresden has dedicated itself entirely to the material carbon and manufactures with it at the highest level. This guarantees stability and durability.
The rims installed here combine the positive properties of the RR40 and the XC25. This means that aerodynamics and impact resistance meet. This is exactly what makes good gravel equipment. If you're going fast on asphalt, they offer the wind hardly any surface to attack, if you're speeding down gravel roads, they also forgive an impact.
The first is due to the high profile and its special, curved shape. The hookless and extra reinforced rim flange ensures robustness. This also puts away harder punctures and thus prevents damage to this exposed area. In addition, the air pressure can be lowered, which significantly increases comfort and grip. In addition, the enormous inner width gives the tire perfect support, which prevents it from buckling in fast corners and creates more driving stability.
The high-quality workmanship and the well thought-out choice of materials forgive you for a driving mistake and let the rims look like new even after many kilometers.

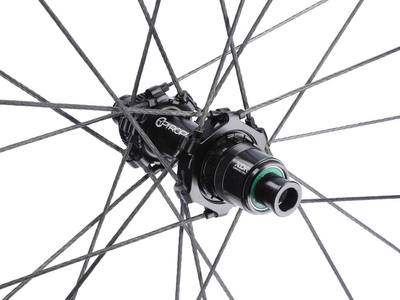

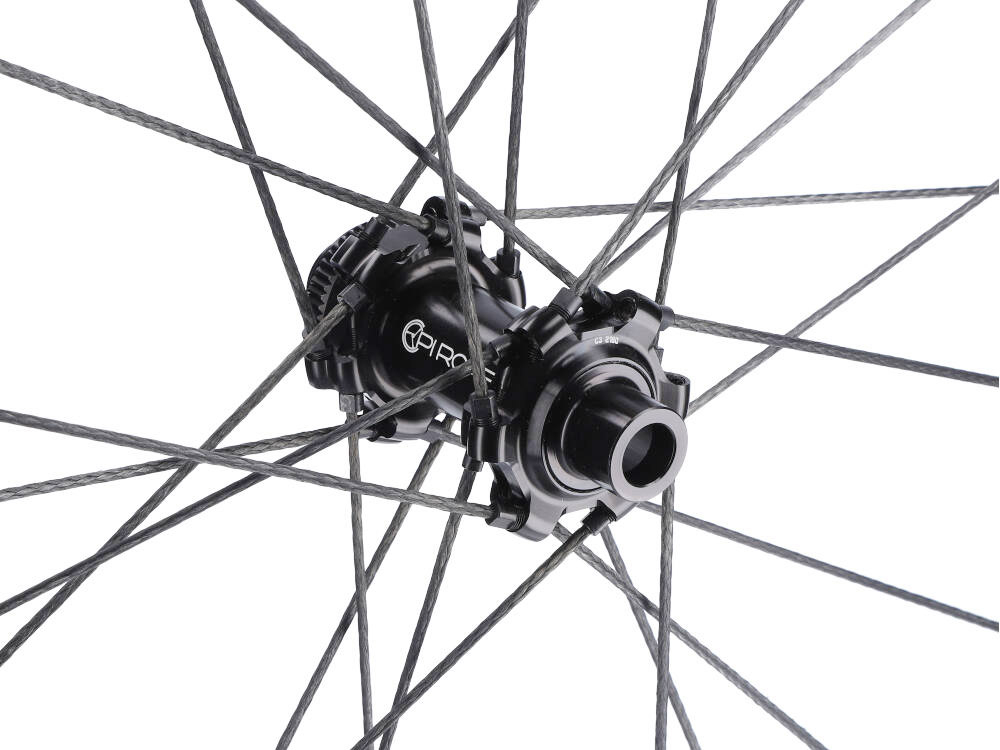

In cooperation with the well-known impeller and component manufacturer NEWMEN, hubs were specially developed that can accommodate the special ends of the PI ROPE spokes. In the current FADE hubs with pawl freewheel, as in the predecessor, long-lasting bearings are pressed in stress-free and precisely, so that the often tedious adjustment of the axial bearing play is completely eliminated. Thanks to the slim shape in the middle part, the hub saves weight and is also more aerodynamic.

The makers of PI ROPE have confidence in their products and grant a 3-year guarantee on all material and manufacturing defects as well as a 2-year crash replacement.

Technical specifications

intended use : Gravel
Wheel size: 28" (ETRTO: 622 x 25 mm)
Rim Type: Clincher (clincher and folding)
Brake type: only for disc brake
Brake disc mount: Center Lock
Material hub: aluminum, steel
Material rim: carbon
Material spoke: Vectran synthetic fiber
Inner width: 25 mm
External Width: 30.4mm (32.4mm at the bulge)
Rim Height: 40mm
Offset: no
Number of holes: 24 holes (per rim)
Spokes: 48x Pi ROPE Vectran PI Protect textile spokes / straight pull (black)
Lacing pattern: 3-crossed
axle type front: 12x100 mm thru axle
axle type rear: 12x142 mm thru axle
Front bearing : 2x industrial deep groove ball bearings
bearing : 4x industrial deep groove ball bearings
Freewheel Compatibility: 11-, 12-speed Shimano Road, 12-speed SRAM XDR, 13-speed Campagnolo N3W
Freewheel type: 3 pawls, 36 detents
recommended tire width: 28 - 55 mm
max. air pressure: 61 psi / 4.2 bar (at 28 mm), 41 psi / 2.8 bar (at 55 mm)
tubeless capable: yes
maximum system weight: not specified (driver, bike, clothing and possibly luggage)
Valve hole: Presta valve (SV)
Color rims: UD satin black, gray decals
Color spokes: black
Color hubs: black

Weight according to the manufacturer: 1430g

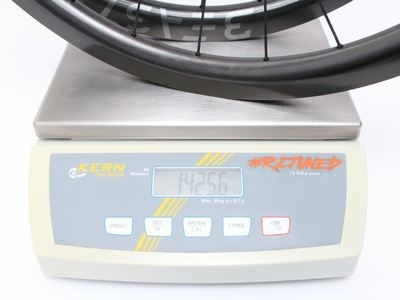

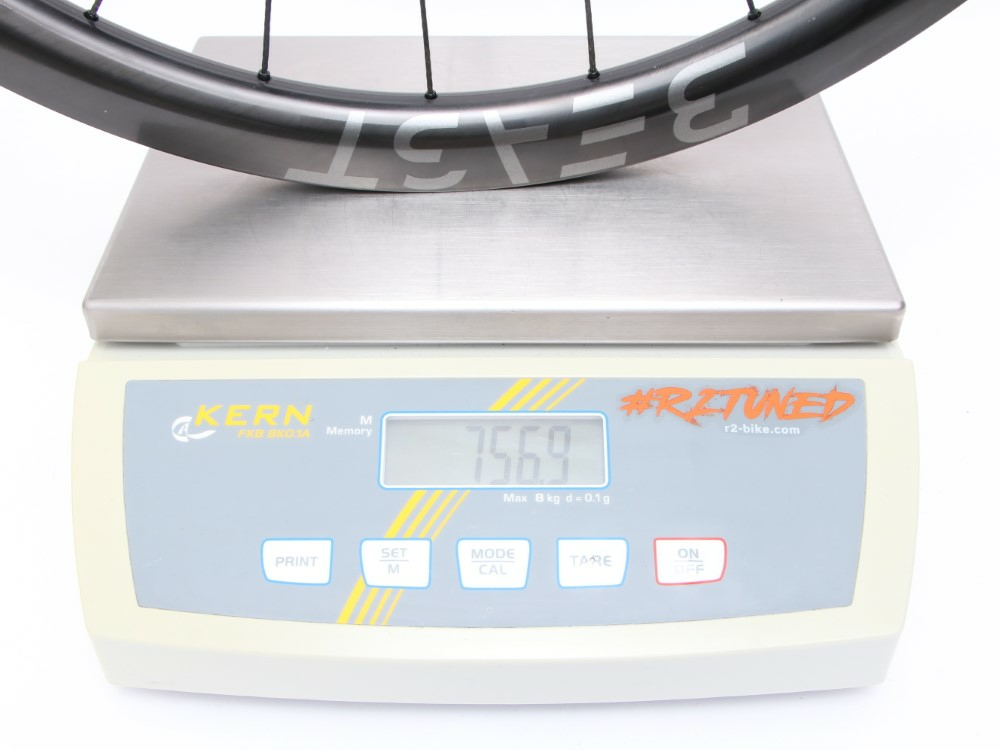

Weight weighed: 1426g (wheelset), 669g (front wheel), 757g (rear wheel)

Scope of delivery:

1x front wheel
1x rear wheel
1x spare spoke
1x tube of care oil for textile spokes
