OAK COMPONENTS Brake Lever Set Root Lever Pro for Magura MT Brakes | lunargrey
The revolutionary brake lever upgrade for your MAGURA MT brake system.
The OAK Components Root Lever convinces in the Pro version with completely tool-free adjustability, outstanding durability and the unique design. The result of all development work by Oak Components is a brake lever that offers many customisation options and has an outstanding kink protection for your brake line.

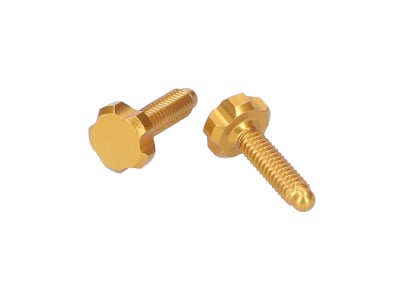

The "Empty Path Adjustment" (EPA) screw allows for easy adjustment of the empty path on the lever. The "Contact Point Adjustment" (CPA) screw allows you to adjust the "bite point" in 1/4 millimetre increments via detents on the screw.
Together, the two adjustment screws allow you to adapt your brake to literally any preference. Levers far away from the handlebar and a long freestroke? That is definitely possible. Levers very close to the handlebar and literally no free travel? No problem. Anything in between? That's possible too, of course.
In addition to your new lever, you get a steel spring that replaces the rubber sleeve protecting the brake line. According to Oak Components, the spring is more reliable in the event of a fall and distributes the forces evenly to protect the line.
EPA (Empty Path Adjustment)
OAK's EPA system allows the brake lever to be adjusted easily, quickly and accurately. This eliminates the need for a return spring, which often causes problems on MT series brakes. In combination with the CPA system, every conceivable lever position can be achieved and the brake can be adapted to all personal preferences. Your braking system is more fail-safe than ever before.
CPA (Contact Point Adjustment)
The CPA from OAK Components is a mechanism for fine adjustment of the pressure point. The manufacture of a special adjustment screw makes it possible: The pressure point can be adjusted in 1/4 millimetre increments via fine detent marks on the thread of the specially designed adjustment screw and provides haptic feedback through a clearly defined click. The adjustment range is significantly larger than with original Magura levers and makes the braking system more adaptable.
SBP (Superior Bending Protection)
A completely new design of bend protection on the brake line mount protects this highly stressed area. Kinking of the brake line can lead to a spongy pressure point or, in the worst case, to oil loss. Experience has shown that the usual plastic parts do not provide reliable protection in the event of a crash or contact with a tree. In tests, a steel spring was able to absorb the acting forces much better and is the means of choice.
ALK (Advanced Lever Kinematics)
Adjusting the lever ratio for maximum braking power with first-class dosing makes a good brake even better. OAK Components have calculated, compared and tested countless variations until they have come to the best result for themselves and their team riders.
Note: Please note that these levers are a third party tuning upgrade and are not sold by the brake manufacturer. They should be installed by an experienced mechanic. For installation, the brake line must be opened and shortened by approx. 10 mm. If you lack the necessary experience or the appropriate tools, we recommend having the installation carried out by a workshop.
The brake levers are 100% developed and manufactured in Bavaria/Germany.
Short supply chains - Excellent quality - Better CO2 balance - More riding fun!
technical data:
Area of application: Tuning your Magure MT brake
Material: CNC milled aluminium, anodised
Compatibility brake lever: MT4/MT5/MT6/MT7/MT8/MT Trail Sport/SL brakes (from model year 2015, Carbotecture, Carbotecture SL)
Lever type: 1-finger
Possible settings: Lever width, idle travel
Colour: Lunargrey (grey)
Weight according to manufacturer: ---
Weight weighed: 59g (pair)
Scope of delivery: 1x OAK COMPONENTS brake lever set Root Lever Pro for Magura MT brakes | lunargrey
