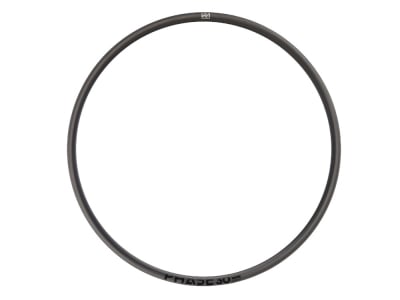

NEWMEN Rim 29" Phase 30 Base Carbon | 28 Hole
Advanced becomes Phase - Newmen provides a special rim for every area of application within this series. Whether cross-country, all-mountain or enduro, you always get a model that is uncompromisingly customized, but they all have one thing in common: Newmen's high quality.
The Phase Base is the first choice for every trail biker, with its low weight and first-class riding characteristics. The perfectly processed carbon fibers are extremely impact-resistant and give the rim incredible stability. This means that precise steering movements are possible at all times. A special production process makes reworking and painting unnecessary. This saves even more grams.
The very generous inner width of 30 mm, together with the slightly outward-positioned sidewall, gives the tire an optimally round shape, which is reflected in better grip and more comfort. The latter is also promoted by the very flat profile.Newmen has opted for a hookless rim flange, which has been further reinforced compared to the light version and is better able to withstand possible punctures. As a result, you can ride with low air pressure and achieve optimum tubeless compatibility.
The makers of Newmen have confidence in their products and grant a 3-year warranty on all material and manufacturing defects in addition to the statutory warranty on all products. In addition, all carbon rims come with a lifetime crash replacement of 50% off the recommended retail price (RRP) applicable at the time.
Technical data
Area of application: Trail, e-bike
Material: Carbon
Rim type: clincher (clincher and folding tires)
Brake type: only for disc brakes
ETRTO: 622x30
ERD: 597 mm
Inner width: 30 mm
Outer width: 37 mm
Rim height: 21 mm
Offset: no
Number of holes: 28 holes
tubeless compatible: yes
ASTM classification: n/a
recommended tire width: 58 mm (2.3") - 66 mm (2.6"); 50 mm (2.0") - 76 mm (3.0") possible
maximum tire pressure: 2.5 bar (36 psi) at 50 mm tire width
maximum system weight: 150 kg (rider, bike, clothing and possibly luggage)
maximum spoke tension: 1200 N
Features: hookless rim flange
valve hole: 6 mm (SV)
Finish: UD matt
Color: black
Weight according to manufacturer: 430g
Weight self-weighed:
Scope of delivery: 1x NEWMEN rim 29" Phase 30 Base Carbon | 28 hole
