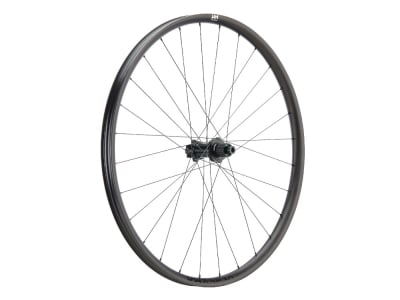

NEWMEN rear wheel 29" Phase 30 Light 6-hole | 12x148 mm Boost | Shimano Micro Spline
Advanced becomes Phase - Newmen provides special wheels for every area of application within this series. Whether cross-country racing or trail adventures, you always get a specifically adapted model. But they all have one thing in common: Newmen's high quality.
The Phase Light rear wheel is the first choice for every XC racer. It shines with the lowest weight and first-class riding characteristics. The perfectly processed carbon fibers of the rim are extremely impact-resistant and give it incredible stability. This enables loss-free propulsion at all times. A special production process makes reworking and painting unnecessary. This saves even more grams.
The very generous inner width of 30 mm, together with the slightly outward-positioned sidewall, gives the tire an optimally rounded shape, which is reflected in better grip and more comfort. Newmen has opted for a hookless rim flange, which has been reinforced and prevents possible punctures. This has been reinforced and is better able to withstand possible punctures. As a result, less air pressure can be used and optimum tubeless compatibility is achieved.
Newmen's own FADE hub is in no way inferior to the rim. User-friendliness has been placed in the foreground. It is not necessary to adjust the axial bearing play. The bearings are pressed in precisely and tension-free ex works. The seal is also perfect, so that water and dirt have no chance of penetrating inside. A pawl freewheel converts your acceleration into propulsion. To ensure reliable operation, the pawls are very short and wide in order to better distribute the forces that occur. Despite the relatively low weight of the hubs, safety has not been compromised. It is better to use a little more material at critical points, such as the transition between the brake disk and spoke mount, than to risk a defect.
The rim and hub are connected with lightweight Sapim Laser spokes. Their center section, tapered to 1.5 mm, saves weight and is elastic. This increases comfort and any load peaks can be better digested without causing damage.
The makers of Newmen have confidence in their products and grant a 3-year warranty on all material and manufacturing defects in addition to the statutory warranty on all products. In addition, all carbon rims come with a lifetime crash replacement of 50% off the recommended retail price (RRP) applicable at the time.
Technical data
Area of application: Cross Country
Wheel size: 29" (ETRTO: 622 x 30 mm)
Rim type: clincher (clincher and folding tires)
Brake type: for disc brakes only
Brake rotor mount: 6-hole (IS2000)
Material: UD Carbon
Inner width: 30 mm
Outer width: 36 mm
Rim height: 21 mm
Number of holes: 28 hole
Axle standard: 12x148 mm Boost
Bearing: 4x industrial deep groove ball bearings
Freehub compatibility: 12-speed Shimano Micro Spline
Freehub type: 3 pawls and 36 ratchets
Spokes: Sapim Laser Straightpull (straight) | 2.0 - 1.5 - 2.0
Lacing pattern: 3-cross lacing
tubeless compatible: yes
recommended tire width: 58 mm (2.3") - 66 mm (2.6"); 50 mm (2.0") - 76 mm (3.0") possible
maximum tire pressure: 2.5 bar (36 psi) with 50 mm tire width
maximum system weight: 130 kg (rider, bike, clothing and possibly luggage)
Rim color: black matt with silver and shiny black decals
Hub color: black
Weight according to manufacturer: 740g
Weight as weighed: 751g
Scope of delivery:
1x NEWMEN rear wheel 29" Phase 30 Light 6-hole | 12x148 mm Boost | Shimano Micro Spline
1x Milkit Tubeless Made Easy Kit
