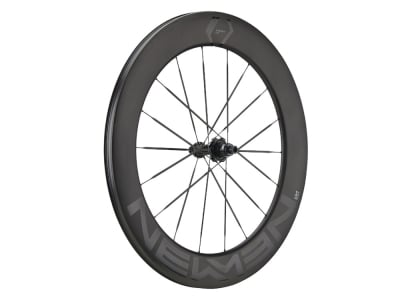

NEWMEN rear wheel 28" road bike Streem TT.80 VONOA Center Lock | 12x142 mm thru axle | SRAM XDR
Whether on the test bench, the legendary spring classics or on a long tour, Newmen's professional wheels of the Streem series perform at the highest level in every application. Their development began back in 2020 with the aim of finding the best compromise between good aerodynamics, low weight, stability and comfort. And the results are definitely impressive. Technically and visually, the wheels show all the know-how and attention to detail of the Newmen engineers. In addition, several victories in professional races were already achieved during the test phase.
Are you a specialist in the battle against the clock or do you simply love high speeds? Then the TT.80, TT stands for Time Trial, is the ideal rear wheel for you. The 80 mm high rim flank offers unprecedented aerodynamics and, thanks to its special shape, reliably keeps you on track even in strong crosswinds. It is the perfect partner for the TT.80 front wheel, but can also be combined with the S.60.
Streem carbon rim
The Newmen carbon rim is made exclusively from the highest quality UD carbon fibers. Its shape achieves excellent values in all wind conditions and the profile behaves neutrally even in crosswinds. Thanks to the enormous inner width of 22 mm, it has been aerodynamically optimized for tires with a width of 28 and 30 mm. This allows the air pressure to be lowered and generates more grip and greater comfort. Newmen has opted for a hook profile, which offers both tubeless tires and classic clincher tires with inner tubes a secure hold at all times. In order to keep the high-quality UD carbon look visible and save weight, only a wafer-thin layer of clear lacquer is applied after the production process.
Fade R CS hub
Newmen's own Fade R CS hubs take center stage and are equipped with high-quality, double-sealed industrial bearings for durability under all conditions. In contrast to the tried and tested FADE Road hubs, this version has been reinforced on the inside. The 36-toothed pawl freehub ensures instantaneous acceleration. In addition, the reduced noise technology ensures a pleasant freewheel sound. This means that any forces that occur can be better compensated and it is even approved for use on e-road bikes. Externally, the slim design has been retained, which prevents air turbulence and improves aerodynamics. The flanges have been modified, which can now accommodate the VONOA carbon spokes and are visually eye-catching.Furthermore, Newmen uses a special grease which has a 25% higher water absorption capacity and a very high bleeding temperature and protects the bearings from premature wear and corrosion.
The 18-hole front hub is a new development especially for road wheels with VONOA carbon spokes.
VONOA Aerowide carbon spokes
The highlight of this front wheel is definitely the spokes. These are not made of steel as usual, but of carbon fibers and are approx. 40 % lighter per piece. Together with the lightweight rims, they ensure incredible acceleration values and the best uphill performance. In addition, their aerodynamic shape offers little resistance to the wind, allowing you to save valuable energy. They are also extremely tear-resistant, which means that the wheel can be built very stably and durably even with just 18 spokes.
Streem valve
The world's first internal (tubeless) valve ensures even better aerodynamics and a clean look. To inflate and deflate, simply screw on the supplied valve extension by hand. Thanks to the adapters supplied, the hybrid system can also be used with a conventional valve.
Technical data
Area of application: Road bike, e-road bike up to 60 Nm torque
Wheel size: 28" (ETRTO: 622 x 22 mm)
Rim type: clincher (clincher and folding tires)
Brake type: only for disc brakes
Brake disc mount: Center Lock (max. disc size: 160 mm)
Material: Rim: Carbon; Hub: Aluminum
Inner width: 22 mm
Outer width: 33 mm
Rim height: 80 mm
Number of holes: 18 holes
Axle standard: 12x142 mm thru axle
Bearings: 4x industrial bearings
Freehub compatibility: 12-speed SRAM XDR
Freewheel type: pawl freewheel with 3 pawls and 36 ratchets
Spokes: 18x VONOA Aerowide carbon spokes, straight pull (straight)
Spoking pattern: Drive side: double crossed | Disc side: radial
tubeless compatible: yes
recommended tire width: 25 - 32 mm, aerodynamically optimized for 25 mm width
max. air pressure: n/a
max. system weight: 130 kg (rider, bike, clothing and possibly luggage)
Color rim: black matt with grey decals
Color hub: black matt
Weight according to manufacturer: 790g
Weight weighed by ourselves:
Scope of delivery:
1x NEWMEN rear wheel 28" road bike Streem TT.80 VONOA Center Lock | 12x142 mm thru axle | SRAM XDR
1x Tubolito Tubo-Road tube
1x Streem Aero valve kit incl. rim tape
Note:
Only inflate the Tubolito tube outside the tire to max. 0.5 bar. Otherwise it may deform and become unusable.
