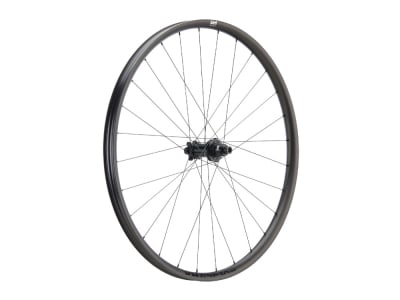

NEWMEN rear wheel 27.5" Phase 30 Base 6-hole | 12x148 mm Boost | Shimano MTB
Advanced becomes Phase - Newmen provides special wheels for every area of application within this series. Whether cross-country racing or trail adventures, you always get a specifically adapted model. But they all have one thing in common: Newmen's high quality.
The Phase Base rear wheel is the first choice for every trail biker. It shines with its low weight and first-class riding characteristics. The perfectly processed carbon fibers of the rim are extremely impact-resistant and give it incredible stability. This enables loss-free propulsion at all times. A special production process makes reworking and painting unnecessary. This saves even more grams.
The very generous inner width of 30 mm, together with the slightly outward-positioned sidewall, gives the tire an optimally rounded shape, which is reflected in better grip and more comfort. Newmen has opted for a hookless rim flange, which has been further improved compared to the Light version. This has been further reinforced compared to the light version and is better able to withstand possible punctures, allowing you to ride with less air pressure and achieving optimum tubeless compatibility.
Newmen's own FADE hub is in no way inferior to the rim. User-friendliness has been placed in the foreground. It is not necessary to adjust the axial bearing play. The bearings are pressed in precisely and tension-free ex works. The seal is also perfect, so that water and dirt have no chance of penetrating inside. A pawl freewheel converts your acceleration into propulsion. To ensure reliable operation, the pawls are very short and wide in order to better distribute the forces that occur. Despite the relatively low weight of the hubs, safety has not been compromised. It is better to use a little more material at critical points, such as the transition between the brake disk and spoke mount, than to risk a defect.
The rim and hub are connected with the reliable Sapim D-Light spokes. Their center section, tapered to 1.65 mm, reduces weight and is elastic. This increases comfort and any load peaks can be better digested without causing damage.
The makers of Newmen have confidence in their products and grant a 3-year warranty on all material and manufacturing defects in addition to the statutory warranty on all products. In addition, all carbon rims come with a lifetime crash replacement of 50% off the recommended retail price (RRP) applicable at the time.
Technical data
Application: Trail
Wheel size: 27.5" (ETRTO: 584 x 30 mm)
Rim type: clincher (clincher and folding tires)
Brake type: for disc brakes only
Brake rotor mount: 6-hole (IS2000)
Material: UD Carbon
Inner width: 30 mm
Outer width: 37 mm
Rim height: 21 mm
Number of holes: 28 hole
Axle standard: 12x148 mm Boost
Bearing: 4x industrial deep groove ball bearings
Freehub compatibility: 9-, 10-, 11-speed Shimano MTB | 9-, 10-speed SRAM MTB
Freehub type: 3 pawls and 36 ratchets
Spokes: Sapim D-Light Straightpull (straight) | 2.0 - 1.65 - 2.0
Lacing pattern: 3-cross lacing
tubeless compatible: yes
recommended tire width: 58 mm (2.3") - 66 mm (2.6"); 50 mm (2.0") - 76 mm (3.0") possible
maximum tire pressure: 2.5 bar (36 psi) with 50 mm tire width
maximum system weight: 130 kg (rider, bike, clothing and possibly luggage)
Rim color: black matt with silver and shiny black decals
Hub color: black
Weight according to manufacturer: 820g
Weight when weighed: 802g
Scope of delivery:
1x NEWMEN rear wheel 27.5" Phase 30 Base 6-hole | 12x148 mm Boost | Shimano MTB
1x Milkit Tubeless Made Easy Kit
Please note:
Contrary to the illustration, the rear wheel is of course supplied with a Shimano MTB freehub body.
