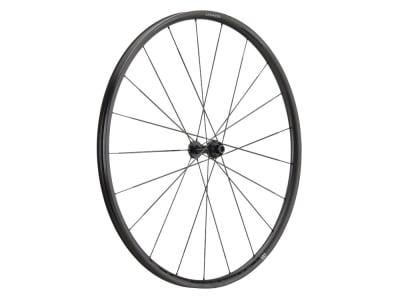

NEWMEN Front Wheel 28" Gravel Advanced SL X.R.25 VONOA Center Lock | 12x100 mm Thru Axle

Description

NEWMEN front wheel 28" Gravel Advanced SL X.R.25 VONOA Center Lock | 12x100 mm thru axle

With the Advanced SL Gravel wheels from Newmen, you get the perfect companion for your off-road and long-distance adventures. Equipped with lightweight yet robust components, the Advanced SL combines reliability, comfort and efficiency.

Newmen's many years of experience in wheel construction can already be seen in the rim. The flawless finish of the high-quality UD fibers guarantees long-lasting durability and first-class riding characteristics. Similar to the MTB rims, the gravel version also has a hookless profile. The biggest advantage of this design is the increased impact resistance of the rim flange without increasing the weight. This makes it possible to ride with low air pressure, which significantly improves grip and comfort. The rim contributes mainly to the low weight of the wheel. At just over 300 g, it acts almost like a spring and provides a lot of fun when accelerating and riding uphill.

At the center are Newmen's own Fade R CS hubs, equipped with high-quality, double-sealed industrial bearings for durability under all conditions. In contrast to the tried and tested FADE Road hubs, this version has been reinforced on the inside. This means that any forces that occur can be better compensated and it is even approved for use on e-road bikes. Externally, the slim design has been retained, which prevents air turbulence and improves aerodynamics. The flanges have been modified, which can now accommodate the VONOA carbon spokes and are visually eye-catching.Furthermore, Newmen uses a special grease which has a 25% higher water absorption capacity and a very high bleeding temperature and protects the bearings from premature wear and corrosion.

However, the highlight of this front wheel is definitely the spokes. These are not made of steel as usual, but of carbon fibers and are approx. 40 % lighter per piece. Together with the lightweight rims, they ensure incredible acceleration values and the best uphill performance. In addition, their aerodynamic shape offers little resistance to the wind, allowing you to save valuable energy. They are also extremely tear-resistant, which means that the wheel can be built very stably and durably even with just 15 spokes.

Technical data

Area of application: Gravel
Wheel size: 28" (ETRTO: 622 x 25 mm)
Rim type: clincher (clincher and folding tires)
Brake type: for disc brakes only
Brake disc mount: Center Lock
Rim material: UD carbon
Internal width: 25 mm (manufacturer's specification), 24 mm (self-measured)
Outer width: 30 mm
Rim height: 18 mm
Number of holes: 21 holes
Axle standard: 12x100 mm thru axle
Bearings: 2x industrial deep groove ball bearings
Spokes: 21x VONOA Aerowide carbon spokes, straight pull (straight)
Spoking pattern: 2:1, disc side: triple crossed | non-disc side: radial
tubeless compatible: yes
recommended tire width: 32 - 68 mm
max. air pressure: max. 4 bar
max. system weight: 130 kg (rider, bike, clothing and possibly luggage)
Color rim: black, UD carbon, matt
color hub: black

Weight according to manufacturer: 465g
Weight self-weighed: 496g

Scope of delivery: 1x NEWMEN front wheel 28" Gravel Advanced SL X.R.25 VONOA Center Lock | 12x100 mm thru axle

GTIN:

4054571231949

MPN:

90958

more  always opened

Manufacturer information

MG-Components GmbH & Co. KG

Am Mühlbach 5c

87487 Wiggensbach

Bayern

Deutschland

https://www.newmen-components.de/

SKU:	67567
Item weight:	496g

586,13 €

MSRP: 870,00 €

incl. 0% VAT , Plus (Sperrgut)

available from stock

available from stock

The item is in stock and will be delivered to you in about 2 - 6 business days (in the EU). When paying by cash in advance, we ship the order after receipt of payment. If your order contains products with different availabilities, this may delay the delivery.
more shipping info: Link »
