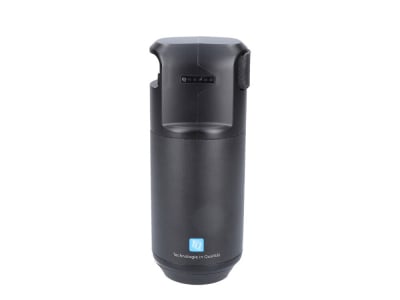

MONDRAKER Range Extender Neat TQ HPR50 | 160Wh battery | semi-integrated
The TQ HPR50 Range Extender, specially developed for the Mondraker Neat, offers you an additional capacity of 160 Wh and is only the size of a 500 ml bike bottle. Conveniently, it can be attached directly to the frame using the FIDLOCK system, but it also fits into any standard bottle cage. During operation, the range extender is discharged first and then the main battery.
Thanks to the second charging socket, the range extender can remain mounted on the bike during charging and also charges the main battery.
Note: The Mondraker TQ HPR50 Range Extender is only compatible with the Mondraker Neat Light E-MTB and may only be charged with the original TQ Charger (FSP235-14S4AC8C) when installed.
Technical data:
Area of application: Light E-MTB
Compatible drive unit: TQ HPR50
Mounting type: Semi-integrated via FIDLOCK system (optionally via bottle cage)
Battery technology: Li-Ion
Diameter: 76 mm
Length: 185 mm
Nominal voltage: 50.4 V
Nominal capacity: 2.8 Ah
Energy: 160 Wh
Operating temperature range: -5°C ... +40°C
Permissible charging temperature range: 0°C ... +40°C
Permissible storage temperature range: 0°C ... +40°C
Recommended storage temperature range: 10°C ... +20°C
Color: black
Weight according to manufacturer: approx. 950g (without frame mounting)
Weight when weighed: 982g (without frame attachment)
Scope of delivery:
1x MONDRAKER Range Extender Neat TQ HPR50 | 160Wh battery | semi-integrated
1x charging cable
1x FIDLOCK system for mounting
