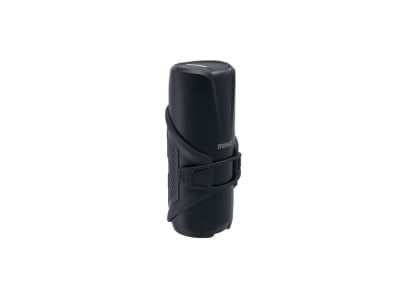

MONDRAKER Range Extender Mahle X20 | 171Wh battery | Semi-integrated
The Mahle X20 Range Extender, specially developed for the Mondraker Dusty, offers you an additional capacity of 180 Wh and is only the size of a 500 ml bike bottle. Conveniently, it can be attached directly to the frame using the bracket supplied, but it also fits into any standard bottle cage. During operation, the range extender is discharged first and then the main battery.
Thanks to the second charging socket, the range extender can remain mounted on the bike during charging and also charges the main battery.
Note: The Mondraker Mahle X20 Range Extender is only compatible with the Mondraker Dusty E-Gravel and may only be charged when installed.
Technical data:
Area of application: E-Gravel
Compatible drive unit: Mahle X20
Mounting type: Semi-integrated via FIDLOCK system (optionally via bottle cage)
Battery technology: Li-Ion
Diameter: 75 mm
Length: 195 mm
Nominal voltage: 36 V
Nominal capacity: 4.73 Ah
Energy: 171Wh
Operating temperature range: 0°C ... +45°C
Permissible charging temperature range: 0°C ... +45°C
Permissible storage temperature range: -10°C ... +20°C
Recommended storage temperature range: 10°C ... +20°C
Color: black
Weight according to manufacturer: 1146g (with frame attachment)
Weight as weighed: 1142g (with frame attachment)
Scope of delivery:
1x MONDRAKER Range Extender Mahle X20 | 171Wh battery | semi-integrated
1x charging cable
