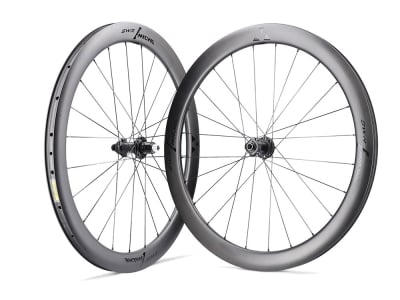

MICHE wheelset 28" SWR Evo 50
The SWR wheels offer you an affordable entry into the world of Miche carbon road bike wheels. They represent the next step in the development of the traditional Italian brand and combine innovative design, high-quality materials and outstanding performance. Every detail has been designed with the utmost precision to achieve an optimum combination of lightness, stability and smooth running.
The SWR Evo 50 wheels are available exclusively for disc brakes and come with a 50 millimeter high rim profile. The rims are made from T700 carbon fibres. With an inner rim width of 22 millimetres, they are ideally suited for use with wide, modern road bike tires.
The hubs are made of CNC-machined 7075-T6 aluminium and are characterized by their innovative design. Their special 16:8 spoke arrangement improves torsional stiffness and thus also power transmission during acceleration. The bearing play of the front and rear hubs can be fine-tuned using an adjustment ring.
Technical data
Area of application: Road bike
Wheel size: 28" (ETRTO: 622 x 22)
Rim type: clincher for folding and clincher tires
Brake type: Disc brake
Brake rotor mount: Center Lock
Material hubs: Aluminum 7075 T6
Rim material: T700 Carbon
Spokes material: Stainless steel
Inner width: 22 mm
Outer width: n.a.
Rim height: 50 mm
Number of holes: 24
Spokes: Straightpull stainless steel aero spokes
Spoking pattern: 16:8
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Front bearing: 2x industrial ball bearings
Rear bearing: 4x industrial ball bearings
Freehub: SRAM XDR 12-/13-speed or Shimano 11-/12-speed Road
Freewheel type: pawl freewheel, 30 engagement points per wheel rotation
tubeless compatible: yes (tubeless tape and tubeless valves not included)
recommended tire width: 25 mm to 34 mm
max. air pressure: 7 bar (101 PSI)
maximum system weight: 109 kg (rider including clothing and luggage)
Valve hole: 7 mm Ø
Rim color: black
Finish rims: UD carbon, matt
Color hubs: black
Finish hubs: matt
Weight according to manufacturer: 1620g
Weight self-weighed: 1639g (rear wheel - 880g, front wheel - 758g)
Scope of delivery:
1x MICHE wheelset 28" SWR Evo 50
2x rim tape
2x Center Lock rings
