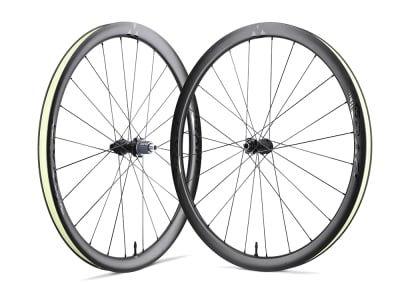

MICHE wheelset 28" Carbo Graff EVO
The Carbo Graff Evo wheels represent Miche's innovative strength and technical excellence in the gravel sector. Their rims are made of T700 carbon and offer an optimum combination of stability and low weight with their 36 millimeter high asymmetric profile. With an inner width of 25 millimetres and hookless TSS (Tubeless Straight Side) technology, the rims are perfectly matched to modern tubeless standards and ensure a secure tire fit.
The new CX hubs with hub bodies made of 7075-T6 aluminum and high-quality SKF bearings ensure particularly smooth and low-friction rolling characteristics. The freehub body, also made of 7075-T6 aluminum, with titanium pawls ensures high stability and durability.
The overall package is rounded off by the Superlight Aero-Straighpull spokes. Weighing just 1445 grams, the Graff EVO wheels are ready to take your next gravel adventure to the next level.
Technical data
Application: Gravel, road bike
Wheel size: 28" (ETRTO: 622 x 25)
Rim type: clincher for folding and clincher tires
Brake type: Disc brake
Brake disc mount: Center Lock
Hub material: Aluminum 7075 T6
Rim material: T700 Carbon
Spokes material: Stainless steel
Inner width: 25 mm
Outer width: 30.5 mm
Rim height: 36.5 mm
Number of holes: 24
Spokes: Straightpull stainless steel aero spokes
Spoking pattern: 12:12
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Front bearing: 2x SKF steel industrial bearings
Rear bearing: 4x SKF steel industrial bearings
Freewheel: Shimano Micro Spline 12-speed or Campagnolo N3W 13-speed
Freewheel type: pawl freewheel, 30 engagement points per wheel rotation
tubeless compatible: yes
recommended tire width: 30 mm to 50 mm
max. air pressure: 5 bar (72 PSI)
maximum system weight: 100 kg (rider including clothing and luggage)
valve hole: 7 mm Ø
Rim color: black
Finish rims: UD carbon, matt
Color hubs: black
Finish hubs: matt
Weight according to manufacturer: 1445g (+/-3%)
Weight self-weighed: 1499g (rear wheel - 826g, front wheel - 673g; including tubeless tape and tubeless valves)
Scope of delivery:
1x MICHE wheelset 28" Carbo Graff EVO including tubeless tape and tubeless valves
1x wheel bag
2x Center Lock Ring
2x Center Lock Adapter
