METI thru axle titanium | Poetry / Zeb
The thru-axle made in Italy is made of high-strength grade 5 titanium on high-quality CNC machines. The material used is extremely resistant to corrosion and has a higher tensile strength than the otherwise used aluminum. In addition, the axle creates a very stiff connection between the dropout and the hub.
The thru axle offered here is suitable for RockShox forks with 15x110 mm dropouts such as Lyrik or Zeb, but it can also be mounted in other forks with the appropriate dimensions. Please check before buying whether the axle fits your fork.
We recommend applying a thin layer of copper paste to the thread during assembly to prevent contact corrosion. The torque specified on the axle must be observed.
Technical specifications:
Material: titanium
Hub standard: 15x110
Compatibility: RockShox Lyrik, Zeb
Axle length: 157 mm
Axle diameter: 15 mm
Thread pitch: M15x1.5
Thread length: 11 mm
Contact surface, not thread side: flat
Tool holder: 6 mm hexagon socket
max.permissible torque: 10 Nm
Color: titanium silver
Weight according to the manufacturer: -

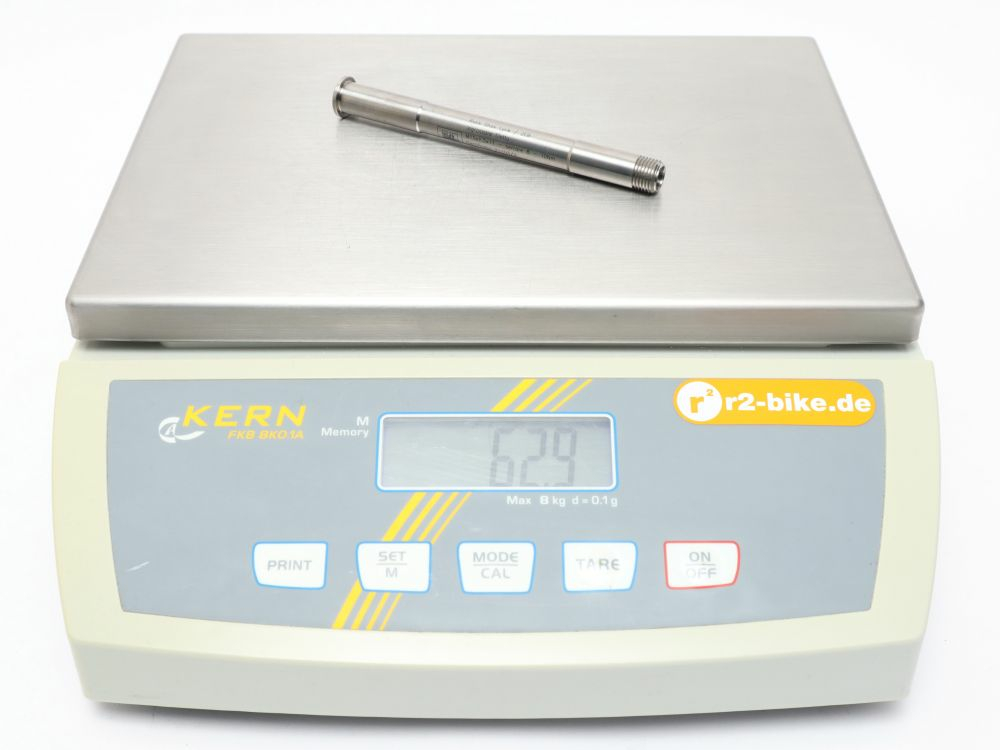

Weight weighed: 63g
Scope of delivery: 1x METI thru axle titanium | Poetry / Zeb
