Description
MAGURA brake disc MDR-P 203 mm | 6-hole
The light support provided by e-bikes puts a smile on your face every day, but at the same time increases the weight of your bike. Getting up the mountain is much more fun - downhill, the more mass and higher speeds bring new challenges for people and material. In order to better meet the special requirements of e-bikes, Magura offers components specially optimized for this purpose.
With the MDR-P, MAGURA presents a brake disc for performance-oriented riders and tough applications - from downhill to e-bikes to heavy cargo bikes. The two-part disc saves weight compared to the MDR-C and is also available for the first time with a diameter of up to 220 mm. A special feature of the two-part disc is the patented toothing of the outer and inner ring (Dovetail Interlink technology). The toothing enables additional support on the inner ring when the outer ring expands. In contrast to floating discs, the torque is transmitted over the entire surface instead of just via the rivets. The result is an increased stiffness of the brake disc and a particularly direct heat dissipation under constant load. Thanks to the new technology, the MDR-P is the strongest brake disc in the Magura portfolio and still offers low weight and reduced vibration, perfect for e-bikes and gravity use.
ATTENTION: The brake disc must not be used with Centerlock adapters!
Technical specifications:
Material friction ring: steel
Material spider: aluminum
Thickness friction ring: 2 mm
Brake compatibility: entire MT family
Disc diameter: 203 mm
Brake disc mount: 6-hole (IS)
Color: black, silver
Weight according to the manufacturer: 216g

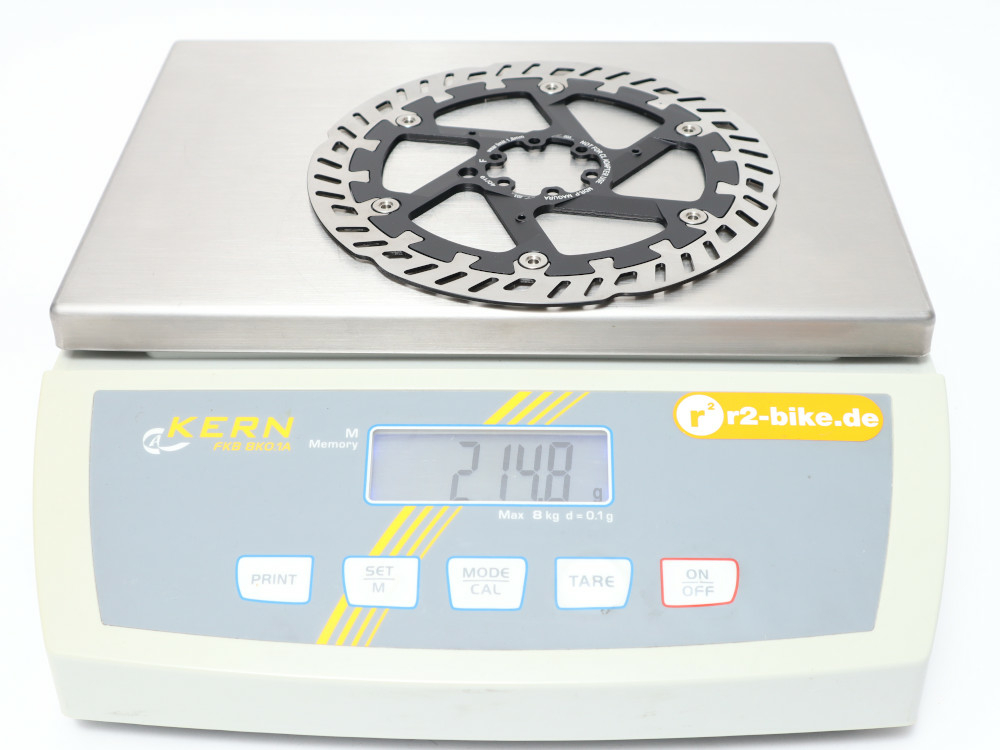

Weight weighed: 215g
Scope of delivery:
1x MAGURA brake disc MDR-P 203 mm | 6-hole
6x fastening screw
