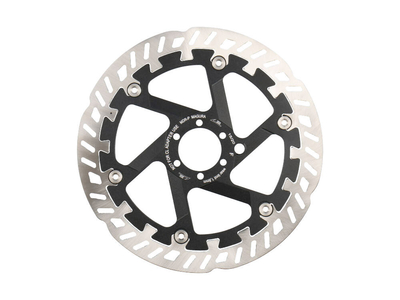

MAGURA brake disc MDR-P 180 mm | Center lock
The light support provided by e-bikes puts a smile on your face every day, but at the same time increases the weight of your bike. Getting up the mountain is much more fun - downhill the extra weight and high speeds bring new challenges for people and material. In order to better meet the special requirements of e-bikes, Magura offers components specially optimized for this purpose.
With the MDR-P Center Lock, MAGURA is introducing a brake disc for performance-oriented drivers and tough jobs - from downhill to e-bikes to heavy cargo bikes. A special feature of the two-part disc is the patented toothing of the outer and inner ring (Dovetail Interlink technology). The toothing enables additional support on the inner ring when the outer ring expands. In contrast to floating discs, the torque is transmitted over the entire surface instead of just via the rivets. The result is an increased stiffness of the brake disc and a particularly direct heat dissipation under constant load. Thanks to the new technology, the MDR-P is the strongest brake disc in the Magura portfolio and still offers low weight and reduced vibration.
Technical specifications:
Material friction ring: steel
Material spider: aluminum
Thickness friction ring: 2 mm
Brake compatibility: entire MT family
Disc diameter: 180 mm
Brake disc mount: Center Lock (CL)
Color: black, silver
Weight according to the manufacturer: 226g
Weight weighed: 233g (203mm)
Scope of delivery:
1x MAGURA brake disc MDR-P 180 mm | Center lock
1x center lock screw
