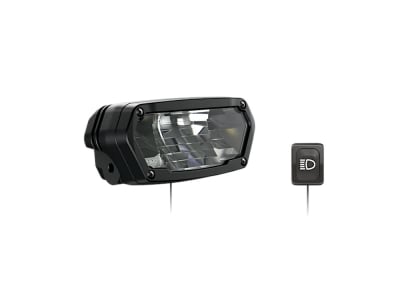

LUPINE e-bike headlight SL MiniMax F | StVZO
2100 lumens - yes, you read that right. Despite its small dimensions, the SL MiniMax develops an incredible output. With it on the handlebars, night becomes day and you will probably even be the envy of car drivers.
Daytime running light, glare-free low beam and the switchable high beam in combination with Lupine's proven lens technology make it the first choice for your bike tours in the dark season. Whether on the road or off-road, you see everything and are seen at all times. The ingenious optics ensure a homogeneous light pattern, both at a distance and at close range.
The SL MiniMax F has a connection cable with open ends. This means it can be connected directly to Shimano drives. Suitable connection sets can be purchased as an option for other e-bike systems.
Robust
The SL MiniMax AF is incomparable. The striking, angular design stands out from the crowd and the reliable electronics are housed in a robust, CNC-milled aluminum housing. This protects the technology from water and impact. Cooling fins ensure excellent heat management and increase the service life of the LEDs. The safe and simple mounting directly in front of the stem means that the front light sits ideally in the middle.
Lupine has also deliberately dispensed with adhesive connections. This simplifies repairs in the event of a component becoming defective. The Upper Palatinate company is therefore fully committed to sustainability and is also a pioneer in this area.
Sensor-controlled "daytime running light"
E-bikers are often underestimated by car drivers. A daytime running light therefore provides a high level of additional safety. The LEDs positioned on the side of the main headlight cannot be overlooked and give you the respect you need. At the same time, the stereo sensor system scans your ambient light and switches the SL MiniMax from "daytime running light" to low beam in good time. The intelligent electronics thus always provide the right illumination.
High beam
This is not just a more powerful low beam, switching to high beam changes the entire light pattern. This means that the area above the glare limit is visible from afar. Even faster rides and detours on the trail are no longer a problem. For safety and improved comfort, the light can be switched back and forth using the wired remote control.
Please use the high beam wisely and turn off in oncoming traffic.
Technical data:
Material: Aluminum 6061-T6
Dimensions (LxWxH): 37 x 69 x 34 mm
Supply voltage: 5 - 15 V DC
Consumption: 2 W daytime running light, 8 W low beam, max. 22 W high beam
Power supply: E-bike drive
E-bike compatibility: 90 cm connection cable with open ends, directly compatible with Shimano drivetrain
Light source: 3x Osram Automotive LEDs
Luminosity: 2100 lumen high beam
Optics: Fresnel reflector combination
Functions: Daytime running light, low beam, high beam with remote control
Communication: -
StVZO approval: K license plate, for e-bikes up to 25 km/h
Bracket: WITHOUT, handlebar bracket optionally available
Color: matt black anodized
Weight according to manufacturer: 100g (lamp head)
Weight when weighed: 110g (incl. extension cable)
Scope of delivery:
1x Lupine e-bike lamp head SL MiniMax incl. 40 cm cable with plug connection and cable remote control (30 cm cable length), WITHOUT bracket
1x 90 cm extension cable with connector and open cable ends (directly Shimano compatible)
Please note
Some of the bikes shown with attachments are for illustrative purposes only and are not included in the scope of delivery.
