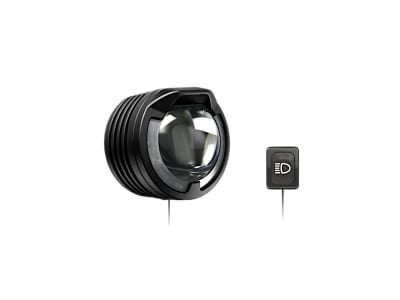

LUPINE e-bike headlight SL F | StVZO
Thanks to Lupine's SL F e-bike light with StVZO approval, night rides are also a pleasure for you. Glare-free low beam, switchable 1300 lumen high beam and Lupine's proven lens technology make it the first choice for your bike tours in the dark season. Their automatic daytime running light also increases your safety on the road.
Simple. Guaranteed.
Mounting the light in front of the stem is extremely easy thanks to the optional aluminum bracket on one side. The light has a 90 cm long cable with open ends for mounting on the e-bike drive. This must be connected to a connection cable suitable for the respective system. This means that the SL F can still be used when changing bikes.
As small and robust as possible
The SL is incomparable. It owes its unique appearance not only to the striking daytime running light, but above all to the development work of the Lupine engineers. They created the smallest and lightest lamp in its class. Its extremely robust and high-quality aluminum body reliably protects the SL from shocks, dust and water and meets the IP68 standard with flying colors. It also has genuine approval in accordance with the StVZO for pedelecs under 25 km/h.
The light has a small button on the underside for switching it on and off. Otherwise, you can control it via the remote control or the e-bike display.
Sensor-controlled daytime running light
The adjustable stereo sensor system scans your ambient light and switches your SL from daytime running light to low beam in good time. The daytime running light of the StVZO models is continuously supported by the main headlight.
High beam
This is not just a more powerful low beam. When switching to high beam, the entire light pattern changes. This means that the area above the glare limit is visible from afar. Even faster journeys and detours on the trail are no longer a problem. For safety and improved comfort, the light can be switched back and forth using the wired remote control.
Please use the high beam wisely and switch off in oncoming traffic.
Light years ahead
At the heart of the Lupine SL are 18 Osram LEDs and the world's first 26° Dual Aspheric Lens System for bicycle lights. These not only illuminate far away, but also light up the close range evenly.
Technical data:
Material: Aluminum 6061-T6
Supply voltage: 6 V -15 V
Consumption: 1.5 W daytime running light, 9 W low beam, 16 W high beam
Power supply: e-bike drive
E-bike compatibility: all e-bikes with at least 12 W light output (specific connection cable optionally available)
Light source: 18x Osram Compact CL LED
Luminosity: 900 lumens low beam, 1300 lumens high beam
Optics: 26° Dual Aspheric Lens System
Functions: Daytime running light, low beam, high beam with remote control
Communication: -
StVZO approval: K license plate (K1552), for e-bikes up to 25 km/h
Bracket: Handlebar bracket optionally available
Dimensions (LxWxH): 49 x 50 x 48 mm
Color: matt black anodized
Weight according to manufacturer: 100g (lamp head)
Weight when weighed: 124g
Scope of delivery:
1x Lupine e-bike lamp head SL F incl. 36.5 cm cable with connector, WITHOUT bracket
1x connection cable 90 cm with open ends
Please note
The bike with attachments shown in some of the pictures is for illustrative purposes only and is not included in the scope of delivery.
