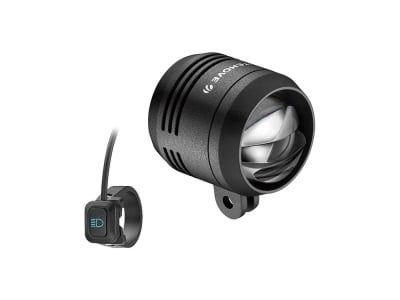

LITEMOVE E-Bike Headlight AC-210 | StVZO
Litemove is a company that develops and manufactures LED lights specifically for e-bikes. They are also active in the field of motorized vehicles and therefore have a great deal of experience and innovation in the lighting segment. The use of aspherical lenses in particular, which offer a complex distribution of the light cone (MTi lens for short and LTi for rear lights), creates a strong and even illumination of the surroundings.
The AC-210 headlight from Litemove offers a 10.5 m wide light cone, which generates 140 lux in the low beam function. It is operated via the display of your e-bike. You use the associated handlebar remote control to operate the high beam, which offers a powerful 210 lux light cone with a range of up to 300 m. It can be mounted either on an existing lamp holder or on a holder offered by Litemove.
Note: connection to a dynamo (alternating current) is not possible. Only compatible with e-bike systems (direct current).
Technical data:
Material: aluminum, CNC-milled, plastic
Dimensions (HxWxD): 31 x 40 x 49 mm (lamp head)
Supply voltage: 12 V, DC direct current (11-16 V)
Consumption: 16 W max. (high beam) | 10 W (low beam)
Power supply: 140 cm connection cable, open ends
E-bike compatibility: Bosch, Shimano, Panasonic, Brose, Yamaha, Specialized
Light source: two LEDs
Luminosity: 210 lux (high beam) / 140 lux (low beam)
Optics: n/a
Functions: Low beam, high beam
Communication: E-bike display and via remote control
StVZO approval: K1644 license plate, for e-bikes up to 25 km/h
Mounting: Handlebar mount (up to 34 mm)
Color: black
Weight according to manufacturer: 128g (without accessories)
Weight when weighed: 160g (with accessories)
Scope of delivery:
- 1x LITEMOVE e-bike headlight AC-210 | StVZO with 140 cm long connection cable
- 1x remote control incl. holder
