KIND SHOCK Seatpost Rage-iS | without Lever | 27,2 mm 380 mm | 65 mm

Description

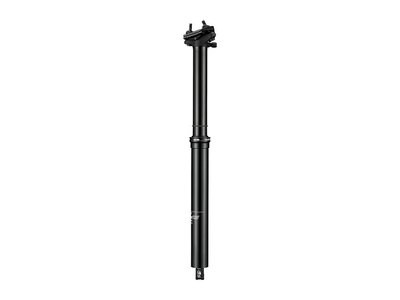

KIND SHOCK seatpost Rage-iS | without lever | 27.2 mm

The KS Rage-iS is a powerful telescopic seatpost with a new adjustable air suspension that sets new standards in the hardtail and gravel sector. Thanks to its internal control, it blends in seamlessly with any of your bikes.There are no annoying cables and the risk of getting caught on branches is minimized. Its pneumatic operation ensures smooth and stepless adjustment. A high-quality seal effectively prevents the ingress of water and dirt. The saddle is attached using a 2-screw clamp, which enables millimeter-precise adjustment. The upper cylindrical clamping nuts simplify mounting the saddle and the vertical angle of the saddle clamping bolts increases the clamping force. Thanks to the excellent workmanship and well thought-out inner workings, you will enjoy this seatpost for a long time.

Combined air suspension to absorb minimal shocks
The integrated air suspension absorbs vibrations, bumps and impacts when riding off-road. This is particularly noticeable on hardtails and gravel bikes and is a real "game changer". The suspension travel of the seatpost is separately adjustable and can be read off via the integrated "sag ring".

Note: This seatpost has additional integrated suspension. This function can be adjusted by the air pressure and is displayed via "sag ring". This must be taken into account during Assembly.

Technical data:

Area of application: Urban to Enduro
Material: Aluminum, hardened dip tube
Screw material: Steel
Operation: compatible with all KS Southpaw, KG and Westy remote levers (internal cable routing)
Diameter: 27.2 mm
Length (A) when extended: 535 mm
Adjustment range (B): 65 mm, 100 mm
Minimum insertion depth (C) incl. control: 140 mm (for both variants)
Min. possible usable height (D): approx. 55 mm (65 mm), 55 mm (100 mm)
max. possible usable height (E): approx. 235 mm (65 mm), 272 mm (100 mm)
Offset: 0 mm
Compatibility seat stays: round (7x7 mm) and oval (7x10 mm)
Functionality: Air-sprung hydraulic cartridge
Feature: integrated additional suspension to absorb small bumps and impacts
max. rider weight: n.a.
Color: glossy black

Weight according to manufacturer: 486g (380 mm), 501g (415 mm)
Weight when weighed: 488g (380 mm)

Scope of delivery:

1x seatpost Rage-iS | without lever
1x cable incl. cover

Note: Please make sure that your frame allows the installation of seatposts with internal cable routing.

GTIN:

4718022319111

MPN:

C268-65-27.2
