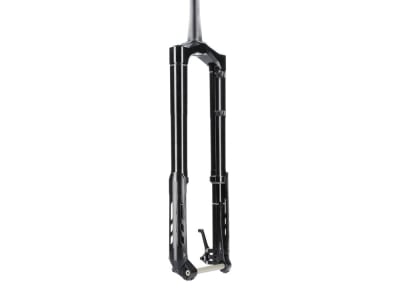

INTEND Suspension Fork 29" Blackline Edge Travel Ranger 160 mm tapered BOOST 44 mm Offset black
Which fork is right for me?
The clever minds at Intend often hear this question - and the answer of course depends on how and where you ride. Do you ride enduro bikes and your weight is in the normal to slightly above-average range? Do you want to go fast, maybe take part in a few races - but also enjoy relaxed tours with your friends without feeling like you have a steel block on your bike?
Then the Edge is your fork.
It is stiffer than the Hero, but lighter than the Flash. Weight has been saved wherever possible - without any noticeable loss of stiffness. Incidentally, the Edge was tested just as rigorously as the Flash and Hero: in the E-Gravity test at EFBE - the toughest fork test of all. So you don't have to compromise on safety.
Maybe Intent's April Fool's joke wasn't so funny after all...
In any case, the upside-down forks are celebrating their comeback with the Opt. upgrade. The air spring and damping have also been revised for perfect function. And the three top models - Hero, Edge and Flash - are now available in the new Blackline look: with black, one-piece forged lower legs and anodized stanchion protectors.
Air spring
Optimized air spring with adapted volume of the positive and negative air chamber. Adapted air seals ensure high reliability, minimum breakaway torque and reduced friction. The progression can be adjusted to your preferences with the bottom caps.
Travel Ranger
The fork can be adjusted in 10 millimeter increments from 150 to 180 mm travel to meet your exact requirements. It is delivered in the configuration you order. All necessary spacers are included so that you can easily adjust the suspension travel to your wishes and preferences at a later date.
Optimized Damping
A revised damping unit that keeps the response of your fork at a consistently high level. Racing Bros seals, special oil and a perfectly adapted tune ensure traction and control. The closed cartridge is self-bleeding and thus ensures consistent function.
Lower Blades
Milled protectors for your fork. The milled parts are not only a visual highlight, they also provide optimum protection for the lower legs.
Opticoat
A special coating on the stanchions for optimum function of your fork.
Features:
- Adjustable suspension travel from 150 mm to 180 mm
- Developed, designed and tested in Freiburg/Germany
- 100% assembled by hand in Germany
NOTE: USD forks in general not 100% compatible to steel braided hoses (Stahlflexleitungen)
Technical data:
Area of use: Enduro
E-bike ready: yes
Wheel size: 29"
Material fork crown/stem: aluminum/aluminum
Material stanchions: 35 mm aluminum, 1-piece
Material downtubes: Aluminum, 45 mm
Axle standard: 15x110 mm BOOST thru axle (No TorqueCap compatibilty)
Steerer tube: 1.5" to 1 1/8" tapered
Steerer tube length: 240 mm
Suspension travel: 160 mm - adjustable in 10 mm steps, from 150 to 180 mm (included)
Installation height: 572 mm - adjustable from 562 up to 592 mm, depending on the set suspension travel
Spring system: Air spring (positive/negative air chamber)
Adjustment of the spring characteristic: yes, progression via various top caps (included)
Damping: low speed compression, low speed rebound
Lockout: without
Brake mount: PM8, post mount (200/203 mm brake rotor)
Max. permissible brake disk size: 223 mm
Maximum tire diameter: not specified by the manufacturer
Max. tire width: not specified by the manufacturer
Offset: 44 mm
Color: black
Weight according to manufacturer: 2250g
Weighed weight (170 mm): 2279g incl. thru Axle (excl. brake Adapter)
Scope of delivery:
1x INTEND suspension fork 29" Blackline Edge Travel Ranger 160 mm tapered BOOST 44 mm offset black
1x thru axle
1x 200/203 mm brake adapter
2x Volumecap to adjust the progression
1x Sag Tool (mini folding rule)
2x Stickers
2x Travel Ranger Spacer
