Description
INTEND Adapter Blackline Extension Brakeadapter PM-PM +20/+23 | black Black
Light and filigree milled post mount adapter from the Intend Blackline series.
This adapter is something special, despite its 4-screw attachment, it looks just as tiny as a 2-screw one. The difference is: the normal 2-bolt adapter must have spherical heads and washers that can accommodate the small angle differences between fork and caliper. With the extension brake adapter you have a solid 4-hole attachment for your brake caliper and also a clean look. Another highlight are the + 3 mm adapter discs made of stainless steel, which are placed above or below the brake caliper, depending on the brake disc, in order to be able to adapt 180/183 mm and 200/203 mm discs, for example.
Note: you can find an up-to-date list of compatible brake calipers here .
Technical specifications:
Material adapter: aluminum
Material screws: steel, titanium
possible front brake disc size: 180/183 mm | 200/203mm
possible rear brake disc size: 160 mm | 180/183mm | 200/203mm
Fork mount : Post Mount PM 6" (160 mm) / PM 7" (180 mm)
mount frame mount: Post Mount PM 5" (140 mm) / PM 6" (160 mm) / PM 7" (180 mm)
Mount mount : Post Mount
Color screws: black
Color adapter: black
Weight according to the manufacturer: 26g

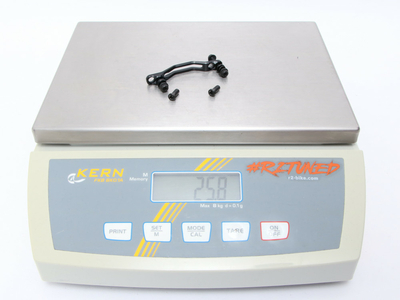

Weight weighed: 26g
Scope of delivery:
1x INTEND Adapter Blackline Extension Brake Adapter PM-PM +20/+23
3x steel screws for caliper
2x titanium screws for adapter
2x titanium washers
2x titanium +3mm adapters
