Description

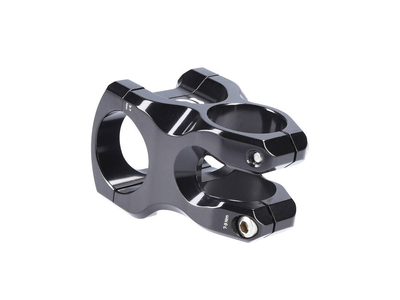

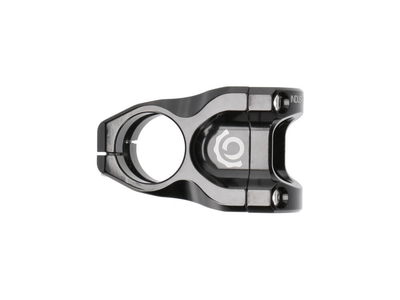

INDUSTRY NINE Stem A35 Stem 35 mm | black
The Industry Nine stems of the A series are real gems on every bike. Developed and produced in Asheville / North Carolina. The stems are made of 7075 aluminum in a timeless design with high rigidity. Each stem is available in a variety of lengths to match the geometry of modern mountain bikes.
The A-Series stems get their name from axle n-manufacturing process. The stems are compatible with both aluminum and carbon handlebars. An extra-wide clamping area of 50 millimeters also increases the rigidity of the cockpit. An additional feature of the A-Series stems is that they can be rotated. Depending on the assembly, the rise of the stem and your cockpit increases or decreases by a few millimeters. In order to keep the weight low, material was saved in all areas that are not relevant for rigidity.
Technical specifications:
intended use : All-Mountain, Trail, Enduro
Material stem: Aluminum 7075
Material screws: stainless steel
Handlebar clamp Ø: 35 mm
Steerer diameter: 1 1/8"
Length: 32mm, 40mm, 50mm, 60mm
Angle: 9° (32mm length), 8° (40mm length), 7° (50mm length), 6° (60mm length)
Rise: +/- 5 mm (32 mm length), +/- 6 mm (40 mm, 50 mm and 60 mm length)
Clamp height steerer tube: 42 mm (32 mm length), 40 mm (40 mm, 50 mm and 60mm length)
Clamp width handlebar: 50 mm
Tool holder: 4 mm Allen key
Max. permissible torque: 5-7 Nm (stem clamp), 7-9 Nm (steerer clamp)
Weight limit: not specified
Finish: glossy
Color: Black
Weight according to the manufacturer: 128g (length 32mm), 135g (length 40mm), 150g (length 50mm), 165g (length 60mm)

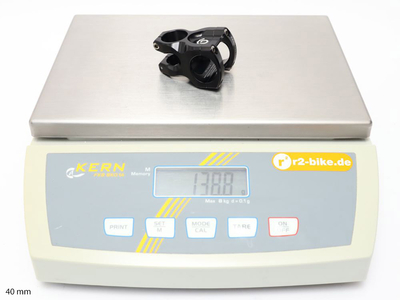

Weight weighed: 138.8g (40mm length)
Scope of delivery: 1x INDUSTRY NINE A35 Stem 35 mm | black
