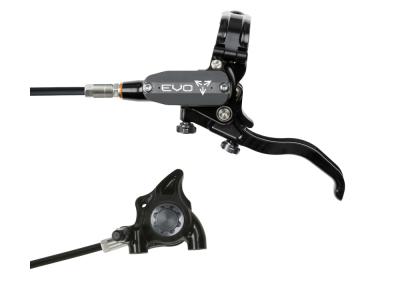

HOPE Disc Brake EVO X2 FM | single | black/smoke
Changed, improved and better!
It's not just the name that's new, improvements, especially on the inside, make up the most significant differences and innovations. The aim of improving performance and simplifying use has probably been achieved.
At the beginning, however, you first have to find your way around and decide which brake you need.
The GR4, TR4 and the X2 are the new EVO models, and the shock of new name abbreviations quickly subsides - so don't panic. In the toughest terrain you can find yourself in, downhill and freeride or in the bike park, in short: gravity, you need the EVO GR4.
For the majority of the MTB family, you are best served with the trail version, the EVO TR4 offers you everything you need. To put it into perspective: Braking performance is about 1 percent below the level of Hope's previous top model, the Tech 4 V4.
The third EVO model in the group is the X2, where the number is again a reference to the number of pistons. From the combination of letter and number, it can already be assumed that the cross-country (XC) sector is covered by this brake.
The most noticeable change is the lever, which YOU will constantly feel on your finger and expect meaningful feedback. A balanced ratio of feel. An optimum braking force. Right through to adjustability that takes your individual anatomical requirements into account. You can use the two screws on the lever to adjust the lever width and pressure point to suit you.
With the standard lever, you get a triangular system that is suspended in the center of gravity. Two further levers are optionally available, which offer you a specification in the direction of control or braking power.
The force is transmitted from the lever to the brake master via a piston. The cam, which takes over the control from the lever to the piston, has been designed in such a way that the free travel has been reduced. This results in a crisp pressure point. The piston guide (movement) has been fundamentally adopted from the Tech 4, a second guide bush optimizes this system and additionally stabilizes the piston.
A new option for bleeding the brake makes servicing much more convenient. The reservoir has been fitted with a small screw that can be used to bleed the system. If you prefer the old method or feel more comfortable with it in your routine, you still have the option of removing the cover.
The brake calliper is made from one piece. This makes it lighter but above all stiffer. Excellent heat dissipation is achieved thanks to the hybrid pistons. The 2-piston design makes the brake ideal for downcountry and XC use due to its weight and braking power.
Technical specification:
Area of application: Downcountry, Cross Country
Brake caliper material: CNC machined aluminum
Brake lever material: Aluminum
Housing material: CNC machined aluminum
Mounting bolt material: Steel
Piston: 2
Piston diameter: 2x 22 mm
Brake mounting: Flatmount
Brake disk: -
Brake fluid: DOT 5.1
Brake line: Plastic or steel braided
Brake Pad: organic
Brake lever design: 1-finger
Grip width adjustment: yes, via adjuster wheel
Pressure point adjustment: yes, via adjuster wheel
Mounting: one-sided
Lever VR brake: left
HR brake lever: right
Cable length: VR 2000 mm or HR 2000 mm
Color: black/gray
standard cable
Weight according to manufacturer: n/a
Weight weighed: 264g
Scope of delivery: completely filled and bled brake with racing Brake Pads (green) without disc/adapter
