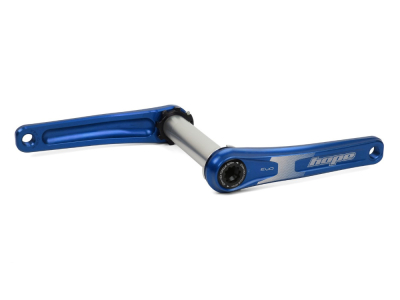

HOPE crank EVO Fatbike Crankset FAT 100 mm
Whether you want to drive cross country, all mountain or downhill, the Hope Evo crank cuts a good figure everywhere. Thanks to the latest material calculation methods in conjunction with complex laboratory and field tests, the EVO crank has become 15% lighter and at the same time stiffer than the previous version.
The crank arms are forged from 7150 aluminum and then milled. Pullers integrated into the crank arms facilitate disassembly of the crank, which can now be done with just a single hex key. With four available wavelengths, the crank is very flexible. This is also ensured by the possibility of mounting both a 2-way Spider and a Hope Direct-Mount chainring. For the crankshaft diameter of 30 millimeters, Hope offers appropriate bottom brackets for all standard bottom bracket housings. As usual with Hope, the Evo crank made in Barnoldswick, England and in the six Hope typical anodized colors is also available.
NOTE: Contrary to the illustration, the crank will be delivered without chainring.
intended use : Fatbike
Material crank arms: aluminum 7150
Material crankshaft: aluminum 7075
Diameter crankshaft: 30 mm
Crank lengths: 165 mm, 170 mm, 175 mm
Spider- / Kettenblattaufnahme: Hope
chain line 1-fold: 65 mm (for 170/177 mm Fatbike rear hubs)
chain line 2-fold: inside 61 mm, outside 69 mm (for 170/177 mm Fatbike rear hubs)
Q-factor: 199 mm
Compatibility Bottom Bracket: BSA, BB92, BB30 Pressfit (Pf30)
Compatibility Chain: 10-speed , 11-speed or 12-speed
Rider weight: n / a
Color crank arms: black, blue, red, silver, orange or purple
Weight according to the manufacturer: 560g (170 mm, crank arms and shaft)
Weight weighed: not specified
Scope of delivery: Crank arms including crankshaft and fixing screws
quick start Guide
