HOPE Adapter Model Q PM-PM +17

HOPE adapter model Q PM-PM +17

With the HOPE adapter, it is possible to mount brake discs with a diameter of 220 mm on a fork with a 203 mm post mount . CNC milled and anodized from aluminum in the usual HOPE quality.

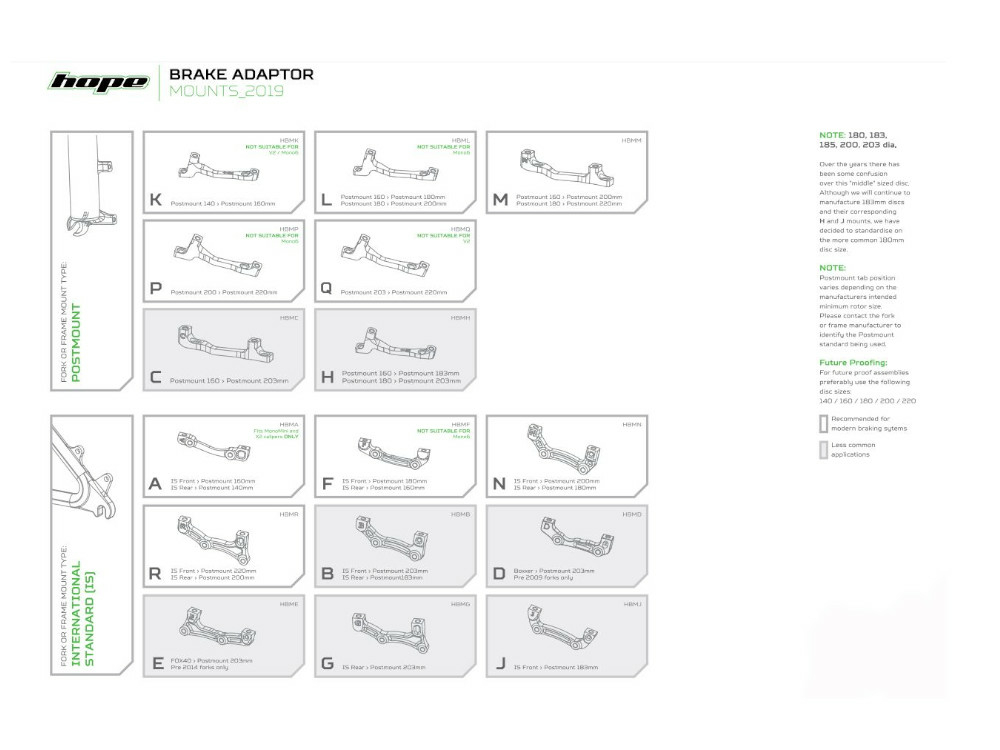

The adapter extends the standard brake disc size of the fork or rear triangle by 17 mm. Please check your fork or rear triangle which post mount variant is installed. Based on the standard brake disc size, the adapter increases the brake disc size by the specified information in millimeters.

PM5 = 140mm standard size
PM6 = 160mm standard size
PM7 = 180mm standard size
PM8 = 200/203mm standard size


Technical specifications:

Material adapter: aluminum
Material screws: steel
Extension in front: +17 mm
Rear extension: -
mount Fork: Post Mount PM
mount rear triangle: -
Brake mount : Post Mount PM
Colour: black or silver

Weight according to the manufacturer: 20g
Weight weighed: ---


Scope of delivery: 1x HOPE adapter model Q PM-PM +17 including attachment

Note: Before assembly, please coordinate the brake disc diameter with the specifications of the fork or frame manufacturer.
