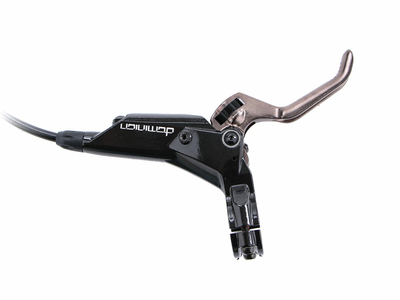

HAYES disc brake Dominion A4 | set
Braking power is everything. That was the challenge the engineers at Hayes took on. The result is the completely newly developed Dominion A4.
The sender on the lever is factory-adjusted to the shortest possible idle travel in order to generate a crisp pressure point immediately upon actuation. Four pistons are built into the cold-forged, stiff brake caliper in order to be able to use the largest possible brake pads and thus to generate maximum braking force. In addition, the generous dimensions of the brake caliper have a positive effect on thermal management. The Crosshair Caliper Alignment System makes it much easier for you to assemble and align your brake caliper. The brake calliper can be adjusted quickly, precisely and without grinding with two set screws on the side.
The motorsport-inspired two-stroke dual-port ventilation system makes it easier to maintain your brakes and you always have optimal performance. The brake line is reinforced with Kevlar in order to withstand possible damage as well as possible and not to distribute the DOT 5.1 brake fluid on the trail.
Technical specifications:
intended use : Downhill / Freeride, Enduro, All Mountain, Trail, E-MTB
Brake caliper material: aluminum
Brake lever material: aluminum
Material fastening screws: steel
Piston: 4
Brake mounting: Postmount
Brake disc: without (Hayes D-Series recommended)
Braking medium: DOT 5.1
Brake line: plastic with kevlar
Brake pad: semi-metallic, optionally sintered
Reach adjustment: yes, without tools
Pressure point adjustment: yes
Mounting: left or right (flip flop)
Clamp: divided
Cable length: 1000 mm (VR) and 1800 mm (HR)
Color: black / bronze, white logo
Weight according to the manufacturer: from 310g (front brake, 90 cm cable)
Weight weighed: from 304g (front brake, 100 cm cable), from 325g (rear brake, 180 cm cable)
Scope of delivery:
HAYES disc brake Dominion A4 | Set without brake disc and adapter!
2x pair of semi-metallic brake pads
2x pairs of sintered brake pads
2x pairs of fastening screws / washers
2x support sleeve, olive and union nut
