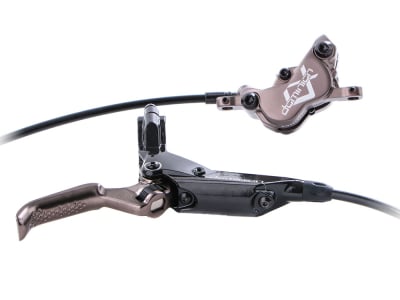

HAYES Disc Brake Dominion A4 | Single Brake | bronze

Description
Variations

HAYES disc brake Dominion A4 | bronze | single brake

Braking power is everything. That was the challenge that the engineers at Hayes set themselves. The result is the completely newly developed Dominion A4.
The sensor on the lever is adjusted at the factory to the shortest possible free travel in order to generate a crisp pressure point as soon as it is actuated. Four pistons are installed in the cold-forged, rigid brake caliper in order to be able to use the largest possible Brake Pads and thus generate maximum braking force. In addition, the generous dimensions of the brake caliper have a positive effect on heat management. The Crosshair Caliper Alignment System makes mounting and aligning your brake caliper much easier. The brake calliper can be adjusted quickly, precisely and without grinding using two grub screws on the side.

The motorsport-inspired two-stroke dual-port bleeding system makes it easier to maintain your brakes and you always have optimum performance. The brake hose is reinforced with Kevlar to withstand possible damage as well as possible and to prevent the DOT 5.1 brake fluid from spreading on the trail.

Note: There may be production-related deviations in the anodizing process, which can lead to variations in the anodized color.

Technical data:

Area of application: Downhill / Freeride, Enduro, All Mountain, Trail, E-MTB
Brake caliper material: Aluminum
Brake lever material: Aluminum
Mounting bolt material: Steel
Piston: 4
Brake mounting: Postmount
Brake rotor: without (Hayes D-Series recommended)
Brake fluid: DOT 5.1
Brake hose: Plastic with Kevlar
Brake Pad: Semi-metallic, sintered
Grip width adjustment: yes, tool-free
Pressure point adjustment: yes
Mounting: left or right (flip-flop)
Clamp: split
Cable length: 1000 mm (VR) or 1800 mm (HR)
Color: bronze-black, white logo

Weight according to manufacturer: from 310g (front brake, 90 cm cable)
Weight self-weighed: from 304g (front brake, 100 cm cable), from 325g (rear brake, 180 cm cable)

Scope of delivery:

1x HAYES disc brake Dominion A4 | single brake front or rear without brake disk and adapter!
1x pair of semi-metallic Brake Pads
1x pair of sintered Brake Pads
1x pair of fixing screws/washers
1x support sleeve, olive and union nut
