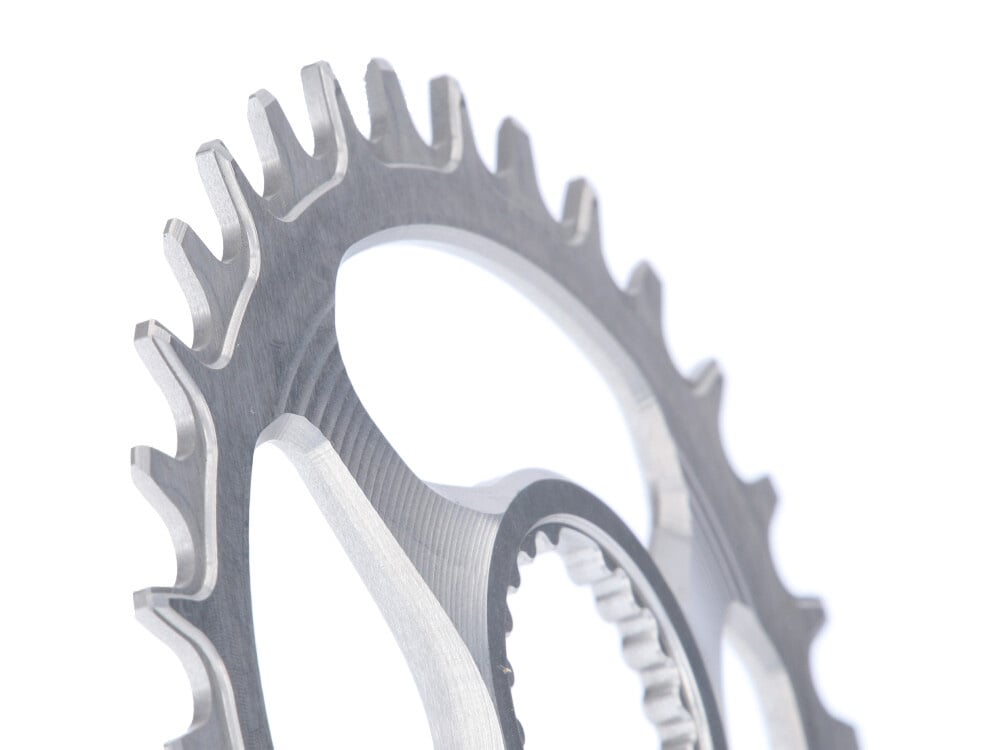

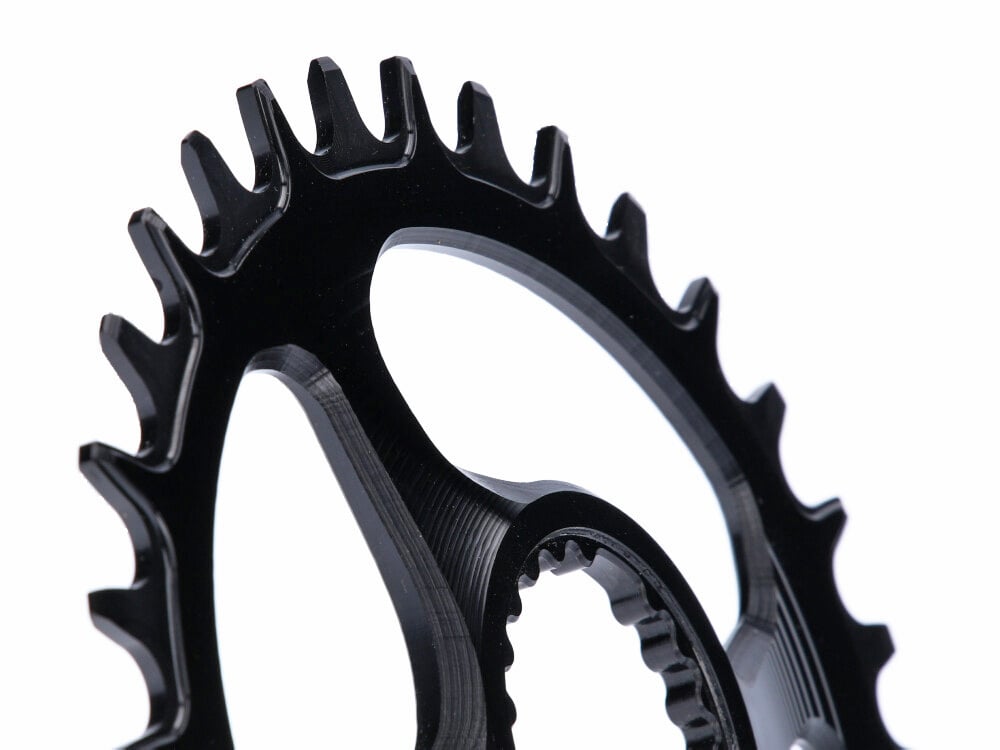

GARBARUK chainring Melon oval Direct Mount | 1-speed narrow-wide Shimano XTR M9100 | 38 teeth
The ultimate solution from Garbaruk for XTR 9100 series cranksets. In the brand new design, all innovative Garbaruk technologies are included in the complete package.
Garbaruk is a company from the Ukraine, which has its roots in motorsport. The design and manufacture of tuning parts for engines and chassis was one of Garbaruk's hobbyhorses. Today, the cycling-enthusiastic Garbaruk brothers incorporate the experience and knowledge they have gained into the production of high-end bicycle parts. Since 2019, the company has been based in Krakow, Poland. What remains unchanged: From design and production to surface finishing - all steps take place under one roof.
7075-T6 aluminum from Germany is the raw material for Garbaruk's elaborately CNC-milled components. The chainrings have a number of features that set them apart from the competition.
narrow-wide teeth
To keep the chain securely in position even without a chain guide, the teeth have a special profile consisting of alternating narrow and wide teeth. The teeth of the Garbaruk chainrings are approx. 40% longer than standard teeth to ensure that this is the case even under very rough and coarse conditions. Furthermore, the teeth are shaped in such a way that the chainring works very well even in muddy conditions. Dirt and mud are effectively removed when the chain runs over.
Melon - oval shape
The ovalization of the chainring increases performance by varying the drivetrain and optimizing resistance. When pedaling with the legs, the natural strengths and weaknesses are harmonized. This results in better use of the stronger muscle groups and compensates for the weaker muscles in the work stroke (shorter stroke).
Direct mount assembly
The chainring is mounted directly on the crank arm and replaces the possible previous spider. The result is a tidy look that saves weight and offers excellent stiffness at the same time.
Technical data
Area of application: MTB
Material: Aluminum 7075-T6
Technology: Narrow Wide, Oval, VCLT
Direct Mount Standard: Shimano Direct Mount
Compatibility cranks: Shimano M9100, MT900, M8100, M7100, M6100
Chain compatibility: 9-speed, 10-speed, 11-speed or 12-speed (SRAM Eagle, SRAM Flattop and Shimano HG+)
Offset: 3.3 mm
Adjustment options: none
Range (ovalization): 12%
Timing (force application): 108 ° after TDC (top dead center)
Color: black, blue, gold, green, orange, red, silver, purple
Weight according to manufacturer: n.a.
Weight self-weighed: -g
Scope of delivery: 1x chainring GARBARUK Melon oval Direct Mount | 1-speed narrow-wide Shimano XTR M9100 | 38 teeth
