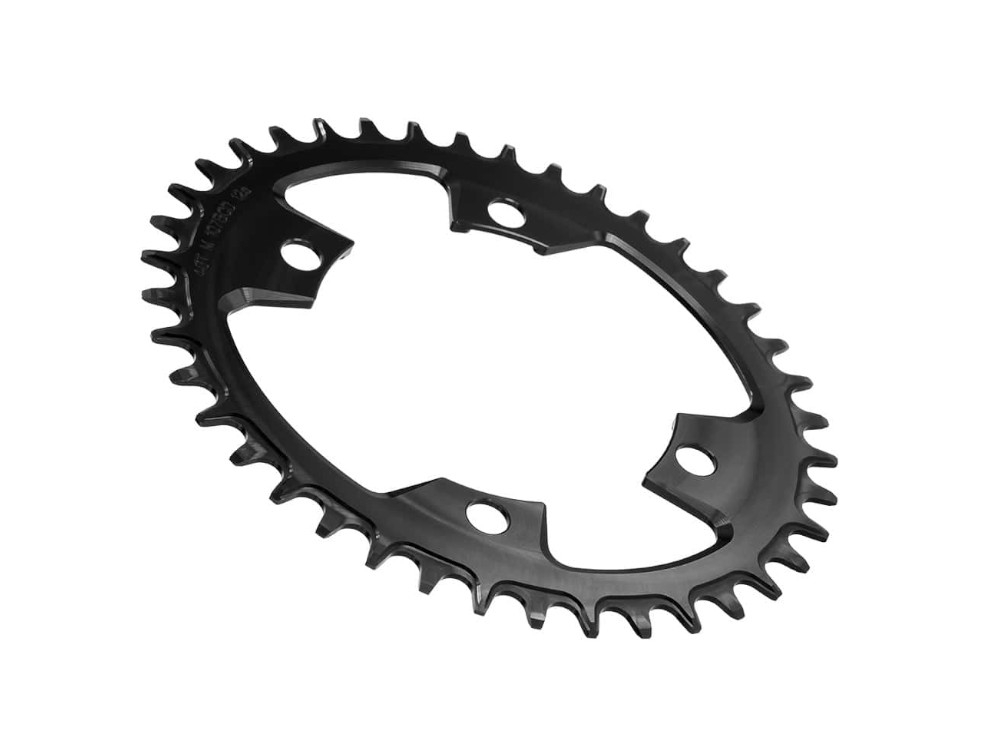

GARBARUK chainring Melon oval 1-speed narrow-wide LK 107 mm SRAM AXS
Garbaruk is a company from the Ukraine that has its roots in motorsport. The design and manufacture of tuning parts for engines and chassis was one of Garbaruk's hobbyhorses. Today, the cycling-enthusiastic Garbaruk brothers incorporate the experience and knowledge they have gained into the production of high-end bicycle parts. Since 2019, the company has been based in Krakow, Poland. What remains unchanged: From design and production to surface finishing - all steps take place under one roof.
7075-T6 aluminum from Germany is the raw material for Garbaruk's elaborately CNC-milled components. The chainrings have a number of features that set them apart from the competition.
VCLT (Variable ChainLine Technology)
Garbaruk works with a changing chainline on all direct mount chainrings. This depends on the number of teeth. The chainline is thus optimized so that the chainring is aligned almost centrally to the cassette according to its size. Other manufacturers usually use a fixed chainline, which must be selected so that even larger chainrings do not touch the chainstay.
Melon - oval shape
Ovalizing the chainring increases performance by varying the drivetrain and optimizing resistance. When pedaling with the legs, the natural strengths and weaknesses are harmonized. This results in better use of the stronger muscle groups and compensates for the weaker muscles in the work stroke (shorter stroke).
narrow-wide teeth
To keep the chain securely in position even without a chain guide, the teeth have a special profile consisting of alternating narrow and wide teeth. The teeth of the Garbaruk chainrings are approx. 40% longer than standard teeth to ensure that this is the case even under very rough and coarse conditions. Furthermore, the teeth are shaped in such a way that the chainring works very well even in muddy conditions. Dirt and mud are effectively removed when the chain runs over.
Technical data:
Area of application: Road bike, cyclo-cross, gravel
Material: Aluminum 7075-T6
Technology: Narrow Wide, Melon (oval)
Bolt circle: 107 mm | SRAM asymmetric
Mounting: 4-arm spider
Number of teeth: 38, 40, 42, 44, 46, 48, 50, 52, 54 teeth
Compatibility cranks: SRAM RED/Force and QUARQ cranks with 107 mm bolt circle (asymmetrical)
Chain compatibility: 9-speed, 10-speed, 11-speed or 12-speed (SRAM Eagle, SRAM Flattop and Shimano HG+)
Mounting position: Outside
Chainline: depending on the crank used
Offset: 2.8 mm
Adjustment options: none
Range (ovalization): 12%
Timing (force application): 108° after TDC (TDC)
Color: black, blue, gold, green, orange, red, silver, purple
Weight according to manufacturer: 66g (38T), 72g (40T), 82g (42T), 91g (44T), 100g (46T), 109g (48T), 115g (50T), 122g (52T), 129g (54T)
Weight self-weighed: 68g (38 Z)
Scope of delivery: 1x GARBARUK chainring Melon oval 1-speed narrow-wide LK 107 mm SRAM AXS
