GARBARUK Chainring Melon oval 1-fach narrow-wide BCD 110 mm Shimano FC-R9100 asymmetric

Item number:
42037
Product weight:
80 g
Manufacturers:

from 102,50 €
MSRP: 109,00 €
You save 5,96%, that is 6,50 €

including 19% VAT. excl. Shipping costs / shipping time info

available from stock
Version
Colour

There are variations of this item. Please select the variation you wish.


Product details

Description

GARBARUK Chainring Melon oval 1-way narrow-wide LK 110 mm Shimano FC-R9100 asymmetric

Garbaruk is a company from Ukraine, which has its roots in motorsport.
The design and manufacture of tuning parts for engines and chassis were part of the Garbaruk company's hobby. The experience gained and the knowledge that the cycling enthusiasts Garbaruk brothers use today in the production of bicycle parts. All steps from design, production to surface finishing take place under one roof.
7075-T6 aluminum from Germany is the raw material from which the chainrings of Garbaruk are elaborately CNC-milled. The chainrings have some features that are different from competitors.

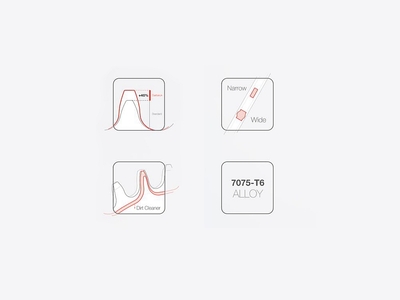

narrow-wide teeth
In order to hold the chain securely in position even without chain guide, the teeth have a special profile of narrow and wide teeth in alternation. To ensure that this is even under very rough and rough conditions, the teeth of Garbaruk chainrings are made about 40% longer than conventional teeth. Furthermore, the teeth are shaped so that even in muddy conditions, the chainring works very well. Dirt and mud are effectively removed when overflowing the chain.

We recommend using a derailleur with increased cage tension (SRAM type 2-3, Shimano Shadow +), which reliably holds the chain in place and prevents the chain from jumping off.


oval shape
Ovalization of the chainring enhances performance through powertrain variation and drag optimization. When pedaling with the legs, the natural strengths and weaknesses are reconciled. Thus, a better use of the stronger muscle groups is achieved and in the weaker muscles a balance in the working path (lower stroke) created.


VCLT (Variable ChainLine Technology)
Garbaruk works with chainrings with a changing chain line , which depends on the number of teeth. For other manufacturers, a fixed chain line common, but must be chosen so that even larger chainrings do not touch the chainstay. The smaller the Garbaruk chainring, the closer it is possible to place it on the chainstay. The chain line is thus even more optimal, since the chainring is aligned almost centered to the cassette.


Technical specifications:

intended use : Road bike, Cyclo Cross, Gravel
Material: 7075-T6 aluminum
Technology: Narrow Wide, Melon (oval)
bolt circle diameter : 110 mm (Shimano asymmetric)
Attachment: 4-arm spider
Number of teeth: 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56 or 58 teeth
Compatibility cranks : Shimano Dura Ace FC-R9100 crank
Compatibility Chain: 9x, 10-speed , 11-speed
Mounting position: outside
chain line : 48.1 mm (42 Z), 52.3 mm (50 Z)
Offset: standard
Adjustment options: none
Range (ovalization): 12%,
Timing (force introduction): 108 ° after TDC (OT)
Color: black, blue, gold, green, orange, red, silver, purple

Weight by manufacturer: 80g (40Z), 89g (42Z), 88g (44Z), 110g (46Z), 127g (48Z), 149g (50Z), 157g (52Z)
Weight weighed by yourself:


Scope of supply : 1x GARBARUK Chainring Melon oval 1-fold narrow-wide LK 110 mm Shimano FC-R9100 asymmetrical

Note: This chainring is not compatible with Shimano Ultegra FC-R8000 and Dura Ace FC-9000 cranks !

The pictured crank is NOT included!
