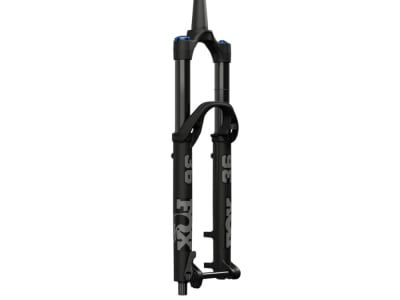

FOX suspension fork 29" 36 Float Performance Grip 3 Pos. Adj 160 mm BOOST 44 mm Offset tapered black | 2026
The undisputed all-mountain champion.
The FOX 36 impresses with its outstanding features. It was designed to master the most difficult descents with confidence and is the answer for every ambitious all-mountain biker. It is equipped with the gravity-specific GRIP X2 damping and thus offers you perfect performance on every ride.
The most obvious innovation is the optimized casting. A newly designed triple clamp increases the torsional stiffness by 20% for the benefit of steering precision without adding weight to the scales. Inside, the distance between the bushings has been increased by 26%. This optimization results in a smoother response, as the overlap of the stanchions is increased and the friction of the bushings is minimized internally due to the lower lever forces. The bypass channels, which transport oil upwards past the bushings, have been moved from the rear to the inside. This increases the lateral stiffness and thus the function under extreme loads.
Casting
The revised casting of the Fox 36 is 20% stiffer than its predecessor without any significant increase in weight. An increased distance between the bushings reduces friction and thus improves function. The mounting of the mudguard has also been optimized. It is fastened with four Torx screws and not under the bleeder valves as before. The bypass channels, which transport oil upwards past the bushings, have been moved from the rear to the inside. This increases the lateral stiffness and thus the function under extreme loads.
GRIP damping
Grip technology offers a user-friendly way to adjust the damping to the rider's personal needs without too many complex adjustments. Compared to other damping systems, the Grip damper is less susceptible to wear and can usually be serviced without much effort.
Float Evol Air Spring
The Float EVOL (short for Extra Volume) air spring is a special technology from Fox that is used in forks and shocks to improve response and spring characteristics
Lower leg channels and bleeders
The optional retrofit bleed valves allow pressure equalization and, with the volume of the bypass channels, help to reduce the pressure increase within the fork and thus improve the response to small bumps, while the circulation of the oil optimally lubricates the bushings and seals. A new positioning of the bypass channels, which have moved from the rear to the inside, also reduces the torsion of the casting. The bleed valves have been redesigned and are somewhat more delicate overall, but are easier to operate thanks to the enlarged pusher. NOTE: the fork is supplied with dummy plugs instead of the valves.
Air Volume Spacers
The FLOAT air spring can be fine-tuned by using volume spacers to make your suspension element more progressive or less progressive.
Floating Axle
Floating axles are similar to conventional thru-axle systems, but offer a significant performance advantage. The special bearing ensures perfect alignment of the fork and avoids unwanted friction caused by tension between the stanchions and lower tubes. Floating axles ensure a much more even suspension movement over the entire range of fork travel and thus improve the response behavior enormously.
Performance
Black is beautiful. Thanks to a robust and durable design, the suspension elements of the Performance series are your reliable companion.
Technical data:
Area of use: Trail, All Mountain
E-bike ready: no
Wheel size: 29"
Material fork crown/stem: aluminum/aluminum
Fork crown diameter: 59 mm
Material stanchions: Aluminum
stanchion diameter: 36 mm
Material downtubes: Aluminum
Axle standard: 15x110 mm Boost QR thru axle
Steerer tube: 1.5" to 1 1/8" tapered (transition from 40 mm to 28.6 mm at 80 mm +/-3 mm)
Steerer tube length: approx. 245 mm
Suspension travel: 160 mm
Suspension system: Float Air, air
Adjustment of the spring characteristic: yes, via volume spacer
Damping: GRIP, closed cartridge
Adjustment options: Compression 3 pos. adj. (open, medium, firm) Rebound
Lockout: 3 pos. adj. from open to firm
Installation height: 571 mm
Brake mount: Postmount (min. 200 mm brake disk)
Max. permissible brake disk size: 230 mm
Max. tire diameter: 762 mm
Max. tire width: 2.6" or min. 8.5 mm tire clearance to fork bridge
Offset: 44 mm
Color: black matt (matte black), grey decals
Weight according to manufacturer:
Weight self-weighed: 2169g incl. thru axle
Scope of delivery:
1x FOX suspension fork 29" 36 Float Performance Grip 3 Pos. Adj 160 mm BOOST 44 mm Offset tapered black | 2026
1x FOX 15x110 mm QR thru axle Boost
3x FOX Air Volume Spacers
1x Ahead claw
1x user manual
