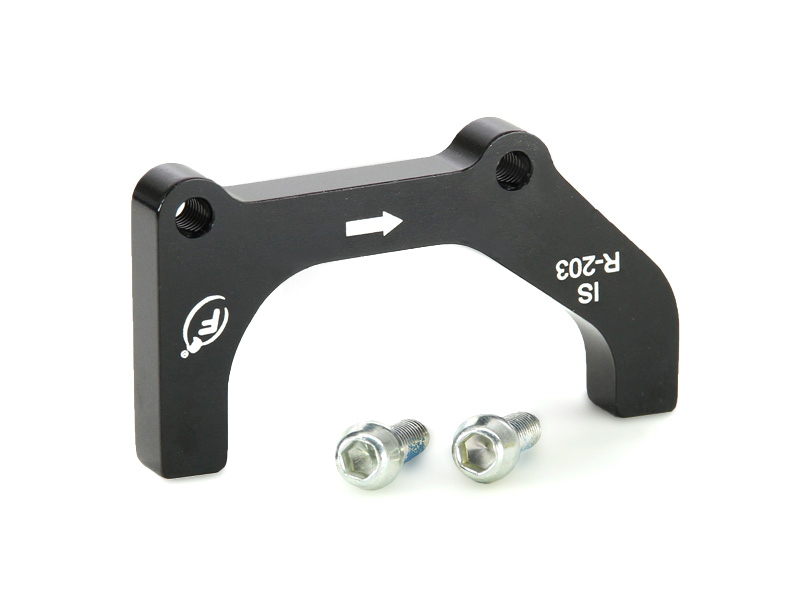

FORMULA brake adapter IS to PM + 43 rear | black
The adapter enables the use of 180 mm (fork with IS 6" mount) or 160 mm (rear triangle with IS 5" mount) brake disks.
The adapter extends the brake disk by +43 mm. The IS2000 standard almost always uses the standard brake rotor size of 160 mm (IS 6") on the fork. A standard brake disk size of 140 mm (IS 5") is almost always used on the rear triangle. Based on the standard brake rotor size, the adapter increases the brake rotor size by the specified number of millimetres. The adapter is suitable for Formula R1, Mega, Oro, The One, T1, Oval and others.
Fork IS 6" = 160 mm standard size
Rear triangle IS 5" = 140 mm standard size
Technical data:
Adapter material: Aluminum
Bolt material: Steel
Front extension: +43 mm
Rear extension: +43 mm
Fork mount: IS 6"
Rear triangle mount: IS 5"
Brake mount: Post Mount
Color: black
Weight according to manufacturer: n.a.
Weight self-weighed: 57g (including mounting bolts)
Scope of delivery:
1x FORMULA adapter brake IS to PM + 43 rear | black
1x fixing screws
