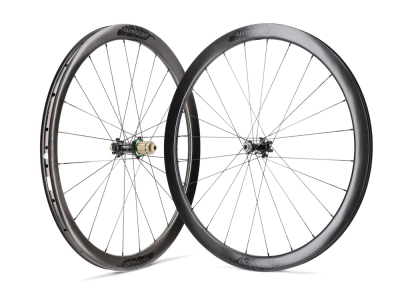

EXTRALITE wheelset 28" Road | CyberDisc 340C with stainless steel spokes | Campagnolo N3W
The CyberDisc 340C from Extralite is a road wheelset in a class of its own! Designed for competition, the 989g lightweight wheels offer impressive acceleration and are made for the steepest ramps in the race profile. The medium-height aero rims are made of special high-performance fibers from Toray. The leading manufacturer of high-quality carbon fibers forms the basis for many exciting lightweights on the market. Very light Hi-Rigidity Fiber is used, which is characterized by exceptional stiffness and stability. The asymmetrical arrangement of the spoke holes achieves a more even spoke tension, which increases the reliability of the wheelset and minimizes maintenance. The generous inner and maximum outer width of the rims are optimized for tire widths of 25 to 32 millimetres and integrate the rubber in an aerodynamically favourable way. The wheelset is ideal for tubeless use to take full advantage of the improved puncture protection and rolling resistance properties of modern tubeless tires.
CyberHub SPD 3+ hubs
The ultra-light Extralite CyberHub SPD 3+ hubs are an Italian masterpiece. The one-piece hub body is precisely manufactured from high-strength 7075TX aluminum using state-of-the-art CNC technology. 7075TX is a variant of the 7075 aluminum alloy, which is mainly used in the aerospace industry due to its particular hardness and resistance. The alloy offers a perfect combination of low weight and high strength, making it ideal for critical applications where high structural integrity is required. At the center of the hub, double-sealed stainless steel bearings rotate on a 17 millimeter thick aluminum axle. The axial play can be precisely fine-tuned via a micro-tuner to prevent unwanted movements and vibrations. Thanks to the straightbull design, the spokes are bolted directly into the hub instead of being guided through traditional storage holes. This ensures a considerable reduction in weight, increases the load capacity of the wheels and gives them a modern appearance. A pawl freewheel provides propulsion. Two pawls engage in a titanium ring with 32 engagement points. This reduces the free travel and also reduces wear.
Stainless steel spokes
There are many reasons why wheel specialists rely on stainless steel spokes, especially for performance-oriented wheels. In addition to its high tensile strength and low elongation, stainless steel scores points for its excellent corrosion resistance and is also lighter than steel.
All Extralite wheels are handcrafted in Italy with great precision and creative passion and stand for outstanding performance, exceptional lightness and a quality of workmanship that is second to none.
Technical data
Area of application: Road
Wheel size: 28" (ETRTO: 622 x 23)
Rim type: clincher and folding tires
Brake type: Disc brake
Brake disk mount: 6-hole
Material hubs: 7075TX aluminum
Rim material: Toray Hi-Rigidity Fiber
Spokes material: Stainless steel
Inner width: 23 mm
Outer width: 28 mm
Rim height: 40 mm
Number of holes: 24
Profile offset: 2 mm
Spokes: HyperLite Aero stainless steel spokes, straight pull, Pillar Ergal DSN nipples
Spoking pattern front: Disc side double crossed, non-disc side radial
Rear spoke pattern: Drive side double crossed, non-drive side radial
Axle standard front: 12x100 mm thru axle
Rear axle standard: 12x142 mm thru axle
Front bearing: 2x stainless steel deep groove ball bearings
Rear bearing: 4x stainless steel deep groove ball bearings
Seal: double sealed
Freewheel type: pawl freewheel, 2 pawls, 32 ratchet points
Freewheel compatibility: Campagnolo N3W
recommended tire width: 25-32 mm
maximum air pressure: 25 mm = max. 6.5 bar (95 PSI), 28 mm = max. 5.5 bar (80 PSI), 32 mm = max. 4.5 bar (65 PSI)
Maximum system weight: 90 kg
Tubeless compatible: yes
Valve hole: Presta valve (SV)
Color & finish rims: black, matt UD finish
Decals rims: lasered black graphics with glossy lettering
Color & finish hubs: black, glossy
Decals hubs: lasered matt white lettering
Weight according to manufacturer: 995g
Weight self-weighed:
Scope of delivery:
1x Extralite front wheel 28" CyberDisc 340C with stainless steel spokes
1x Extralite rear wheel 28" CyberDisc 340C with stainless steel spokes | Campagnolo N3W
1x Extralite Alugrease Super1 for freewheels | 5g
2x spare spokes
